NOTE: An ARP request is a broadcast, and an ARP response is a Unicast.
How does ARP broadcast work?
ARP broadcasts a request packet to all the machines on the LAN and asks if any of the machines are using that particular IP address. When a machine recognizes the IP address as its own, it sends a reply so ARP can update the cache for future reference and proceed with the communication.
What is ARP packet format?
The address resolution protocol (ARP) uses a basic message format that contains either address resolution request or address resolution response. The ARP message size depends on the address size of the link layer and the network layer. Protocol address of the sender hosts. …
Why is an ARP request sent as a broadcast?
ARP Process This request must be a broadcast, because at this point the initiator does not know the target’s MAC address, and is therefore unable to send a unicast frame to the target. Since it was a broadcast, all nodes on the network will receive the ARP Request.
Is the size of ARP packet fixed?
In theory, no, not necessarily, since ARP is flexible enough to be used to discover or describe a connection between other kinds of addresses, which don’t have to be the same lengths as IPv4 and Ethernet addresses.
What type of packet is an ARP reply?
ARP uses packets, but these are not IP packets. ARP messages ride inside Ethernet frames, or any LAN frame, in exactly the same way as IP packets.
Why is an ARP query sent in a broadcast frame?
Why is an ARP response sent within a frame with a specific destination MAC address? Answer: An ARP query is sent in a broadcast frame because the querying host does not which adapter address corresponds to the IP address in question. The minimum frame size therefore is 200 x 100 x 10-6 bits or 2500 bytes.
What is the size of ARP packet?
28 bytes
The size of an ARP request or reply packet is 28 bytes.
What are five different components of a ARP PDU?
Each entry has the following mentioned field.
- State: It shows the state of each entry.
- Hardware type: It defines the type of network on which the ARP package is running.
- Protocol type: It defines the type of protocol on which the ARP package is running.
- Hardware length: It defines the length of the physical address.
Where is an ARP broadcast sent?

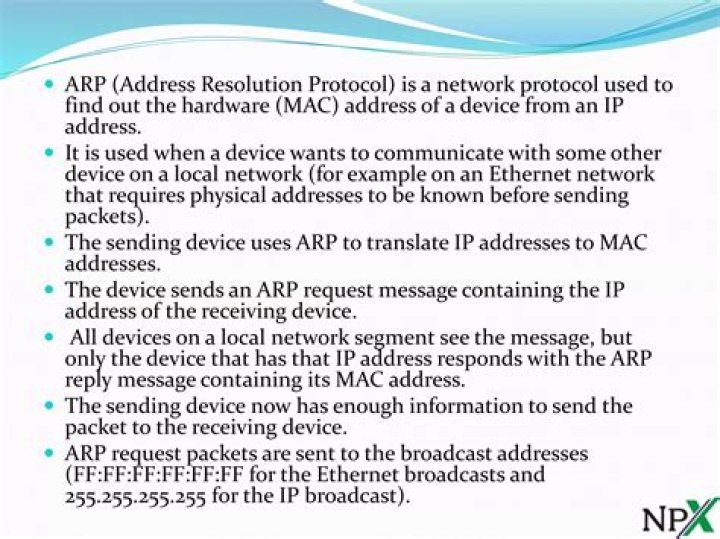

The sending device now has enough information to send the packet to the receiving device. ARP request packets are sent to the broadcast addresses (FF:FF:FF:FF:FF:FF for the Ethernet broadcasts and 255.255. 255.255 for the IP broadcast). Let’s say that Host A wants to communicate with host B.
What is Arp broadcast message?
Understanding ARP Broadcast Message complete the process of how and why Mapping an IP address to MAC Address is crucial under Ethernet Networks. Address Resolution Protocol (ARP) used by Data Link Layer to provide two basic functions: 1) Resolve IPv4 or IPv6 addresses to MAC addresses, and 2) Maintain a Cache Table of MAC to IP addresses.
What is the physical address of the receiver in ARP?
The physical address of the receiver is FF:FF:FF:FF:FF:FF or 1’s. ARP response/reply: It is the MAC address response that the source receives from the destination which aids in further communication of the data. CASE-1: The sender is a host and wants to send a packet to another host on the same network.
What is ARP (Address Resolution Protocol)?
Address Resolution Protocol (ARP) used by Data Link Layer to provide two basic functions: 1) Resolve IPv4 or IPv6 addresses to MAC addresses, and 2) Maintain a Cache Table of MAC to IP addresses. To resolve Name to IP address DNS service is used, to resolve IP address to MAC Ethernet Address, ARP service is used.
What is gratuitous ARP packet?
Gratuitous ARP packet has both, source and destination IP set to the IP address of the device issuing the packet and the destination MAC is the broadcast address ff:ff:ff:ff:ff:ff or 00:00:00:00:00:00 based on the ARP implementation. There will be no follow up packets sent in response to a gratuitous ARP packet.
