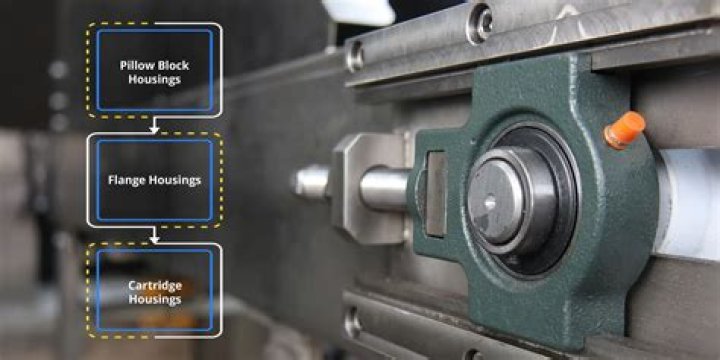

A Pillow Block Bearing is a mounted anti-friction bearing that is contained within a solid cast iron, ductile iron or cast steel housing unit. Pillow block bearings can contain several types of bearings, including ball, roller and tapered.
What is UCF bearing?
The UCF pillow block (RHP SF and MSF series) consists of a bearing insert with a spherical outer diameter in a cast iron housing. The bearing is usually fixed to the shaft by means of two set screws in the extended portion of the inner ring.
How does a pillow block bearing work?
Pillow block bearings are installed on a surface by driving a fastener through these small holes. Pillow blocks work in the same way as most other bearings. The shaft of a machine or object can be inserted into a pillow block bearing to improve rotational movement.
What type of bearing is a Plummer block?
Plummer block housings can be used with high-capacity spherical roller bearings or self-aligning ball bearings. They are manufactured from high-strength cast iron as standard but are also available in cast steel or spheroidal graphite cast iron.
What is UCP bearing full form?
One unit of pillow block consists of deep groove ball bearings with spherical outer rings closed in double sides and a housing made by gray cast iron or punches steel. …
What is a pillow block ball bearing?
A pillow block bearing consists of a mounting bracket (pillow block) that houses a bearing and is used in low-torque, light load applications. With this configuration, the pillow block is bolted to a foundation, securing it, while the shaft and the inner ring of the bearing are free to rotate.
What is a flange block bearing?
A flange block bearing is a kind of thrust bearing with flanges which is used to hold the axial force. The block bearings are usually consisted of two or more thrust washers and several rolling elements. The common rolling elements are made of iron or copper.
What is a pillow block housing?
A pillow block is a pedestal used to provide support for a rotating shaft with the help of compatible bearings & various accessories. Housing material for a pillow block is typically made of cast iron or cast steel. Selection. A pillow block usually refers to a housing with an included anti-friction bearing.
