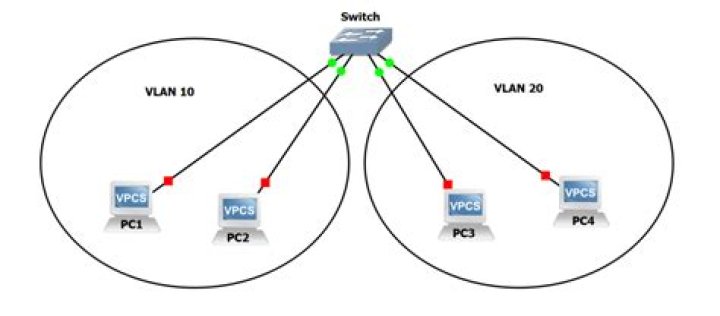

When a port belongs to two or more VLANs of the same type, they remain as separate broadcast domains and cannot receive traffic from each other without routing. NOTE: If multiple, non-routable VLANs exist in the switch—such as NETbeui protocol VLANs—they cannot receive traffic from each other.
How configure VLAN on MikroTik?
Following steps will show you how to create VLAN in your MikroTik Router. Login to your MikroTik Router by winbox with your login credentials. Click on Interfaces menu from left menu bar and then click on VLAN tab. Click on PLUS SIGN (+) to add new VLAN interface.
What is Pvid MikroTik?
PVID – The Port VLAN ID is used for access ports to tag all ingress traffic with a specific VLAN ID. A dynamic entry is added in the bridge VLAN table for every PVID used, the port is automatically added as an untagged port.
Can you have multiple VLANs on one switch?
VLANs can span multiple switches, and you can have more than one VLAN on each switch.
Does MikroTik support VxLAN?
VxLAN support added in 7.0beta5 MikroTik announced VxLAN support on Valentine’s Day (Feb 14th) of 2020. This is a significant feature addition for RouterOSv7 as it will pave the way for a number of other additions like EVPN in BGP.
What is bridge VLAN?
The VLAN & Bridge application allows you to configure groups of ports independent of their physical location as a virtual LAN. This arrangement is called a logical grouping the logical group is called a virtual LAN (VLAN). Ports or groups of ports in a VLAN are called VLAN members. Every VLAN has an equivalent bridge.
How do you communicate between two VLANs?
Three options are available for routing between VLANs:
- Use a router, with one router LAN interface connected to the switch for each and every VLAN.
- Use one router interface with trunking enabled.
- Use a Layer3 switch, a device that performs both the switching and routing operations.
How do I bridge two VLANs together?
Bridging two VLANs together
- untag a port on the internet VLAN.
- untag a port on the remote-site VLAN.
- turn spanning tree off on those two ports.
- connect them together with a crossover cable.
How to create virtual LANs in MikroTik?
Virtual LANs in MikroTik (2) To create vlan in MikroTik, you should have the interface first (if you want to implement in bridge interface) VLAN ID = unique Interface for trunk / access 13
How to prevent two VLANs on the same router from communicating?
Routers by default always create a route to directly connected subnets. So nothing should prevent two VLANs on the same router from communicating, unless the VLANs are configured incorrectly or firewall rules are blocking it. As @Nick B. started at, do the following on the designated routers.
How do the mikrotiks connect to the ISP?
From the existing configuration, both Ether 1 on the Mikrotiks connect to the ISPs using address acquisition of static instead of PPPoE which is the IP address of the modem but both have PPPoE clients configured with PPPoE usernames and passwords.
Why won’t my router know what VLAN a subnet is on?
A router does not care what VLAN a subnet is on until it needs to exit a VLAN trucked interface. While the router is routing between subnets, it just wants to know the subnet IP addresses. Without more information it is hard to know what the problem is, but it is most likely a routing problem, just like @Nick B. mentioned.
