You don’t need a fuse box, just a terminal block. 1 fused Power wire to feed the terminal block and good ground. Remember the bow of a boat gets wet!
What is the difference between marine wire and regular wire?
Beyond being tinned, marine cable is larger than say automotive cable at the same size. So, 6 AWG marine cable contains more copper than 6 AWG automotive cable. The more copper, the better the current carrying capacity of the cable. Marine cable also carries a pliable and durable PVC jacket.
Can I use regular wire on a boat?
In general, automotive wire can be used on boats, assuming that it is SAE (Society of Automotive Engineering) J378, J1127 or J1128 rated, but it is not recommended. Marine-specific wire is unique in a few ways. Most importantly, marine wire is larger for a given gauge size, up to 12% larger in some sizes.
Do boats have fuse boxes?
Today, most boat owners have shunned the large fuse consoles that came in the 80s and 90s. A fuse box, or fuse block depending on the boat maker, connects the electronics aboard your boat to the power source, the battery.
Do I need a circuit breaker for my boat?
Except for those wires that are intended to carry starting currents, every positive wire in the DC main power distribution system must be protected by a fuse or circuit breaker. The American Boat & Yacht Council (ABYC) develops safety standards for boat building and repair.
Do boats have power outlets?
Most boats have a DC electrical system, so you can start your engine or engines, operate interior lights, pump your bilge and operate marine electronics. Your boat’s DC system most likely operates on either 12V or 24V, from energy stored in the boat’s batteries which are replenished by the boat’s charging system.
Can you add shore power to a boat?
Larger boats with multiple appliances and air conditioners probably would need to look at a 50 amp system. Starting at the dock end you will need a new shore power cord for 120 volt 30 amps and you will need a new Deck Inlet on board the boat to connect it to.

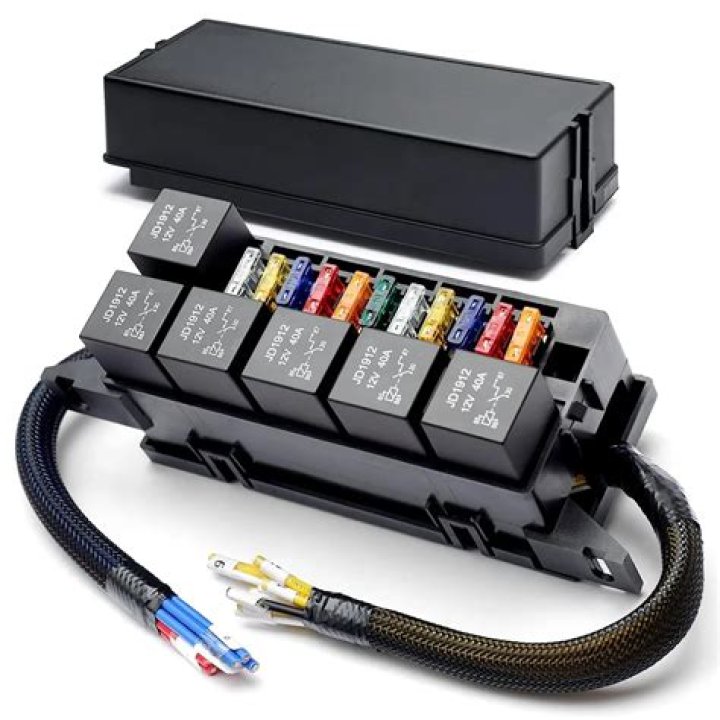

How do I choose the right fuse box for my Boat?
Use a high quality fuse box with positive and negative busbars. Unlike in a car, where circuits can be grounded at virtually any point, circuits on a boat should start and end at the fuse box to prevent stray electrical currents. Use stranded copper wire (tinned copper is best) with an insulation that can withstand the marine environment.
How do you wire an Electric Boat battery switch?
Each electrical circuit on your boat should begin and end at the fuse box. For each circuit, install ring terminals on the ends of the wires. Attach the positive wire at the terminal near the appropriate fuse; attach the negative wire to the negative busbar. Install your fuses and turn the battery switch on.
How do you wire a battery switch to a fuse box?
Run a red cable from the battery switch to the fuse box and cut to size. Install wire terminals on each end. Attach one end to the output terminal of the battery switch and the other end to the largest terminal on the fuse box’s positive busbar.
Where does the Red Wire go on a boat battery?
The black wire is the negative wire and should attach to the ground on the power panel or the negative post on the boat’s battery, the red wire is the hot wire and should attach to a vacant positive post on the power panel or directly to the positive terminal on the battery.
