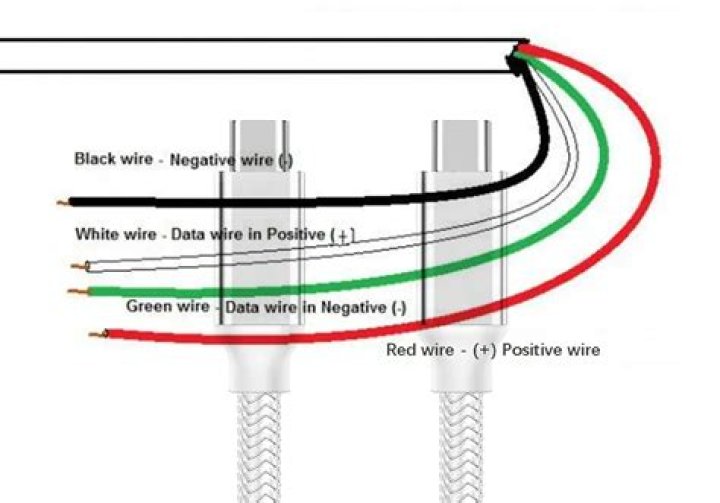

Wire Colors for DC Power Positive – The wire for the positive current is red. Negative – The wire for the negative current is black. Ground – The ground wire (if present) will be white or grey.
What does the red wire connect to?
Black or red wires always carry power from the service panel (breaker box) to your home’s devices. What are Red Wires? Red wires are usually used as secondary hot wires. Red wires are also hot and should be clearly marked to avoid the dangers of electrocution.
Is red or black positive or negative?
The red one is positive (+), the black one is negative (-). Never connect the red cable to the negative battery terminal or a vehicle with a dead battery.
Is red wire the same as black wire?
Red: Hot Wire Like black electrical wires, red wires are also hot or live wires. Red can also be the connecting wire between two smoke detectors that are hardwired. Also, if your circuit box is wired for 240 volts instead of 120 volts, you may even see both red and black wires.
What do I do with the red wire when installing an outlet?
The red wire (switched hot wire) going to the outlet, wires into the other side of the switch and the white wires (neutral), tie together to complete the return side of the circuit. One of the most common wiring configurations your going to find with outlets are shown in the diagram below.
What do I do with the red wire when installing a light?
The answer is that the Red Wire is the Hot Wire from the switch itself. You are wiring your fixture into a junction box where buku wires come together. Hook the white to white, ground to ground and RED to the BLACK Light Fixture Wires.
Why is there a red wire in my outlet box?
In standard 120-volt wiring, the hot wire is black, but it can also be red. In most cases, you see a red wire in an outlet box only in special circumstances. One is that the outlet is a 240-volt one, which requires an extra hot wire. Another is that the box is on a circuit three-way switch loop.
Is there a positive and negative side of a 110V outlet?
There is no positive and negative side in a standard 110 volt AC wall outlet. There is a “hot” and a “neutral” side. The wider slot in the outlet should be the neutral side and the narrower slot should be the hot. It is possible that the outlet may have been wired in reverse polarity, which means the hot and neutral will be reversed (not good).
How do you know if a plug is positive or negative?
If you want to identify positive and negative wires, keep in mind that appliance plugs have hot wires and neutral sites, rather than positive and negative sides. However, if you’re using an extension cord, the positive wire will be the smooth one, while the negative wire will have a ribbed or grooved texture.
What color is the neutral wire on an electrical outlet?
One of the conducting wires — the neutral — is white; that color is mandated by the National Electrical Code. By convention, the other is usually black, but it could be red. Usually, though, you see a red wire only when the outlet is a 240-volt one or when it’s controlled by a switch. credit: Jasmin Merdan/Moment/GettyImages.
