Guitar shielding works very well to reduce 60Hz hum (or 50Hz for some countries) and is effective at blocking the unwanted signal since a Faraday cage cancels an electromagnetic field for anything inside the cage.
Can you shield a guitar with aluminum foil?
Aluminum foil guitar shielding can help protect your guitar from electromagnetic interference, significantly reducing and even eliminating noise. Instead of purchasing a guitar shielding kit, you can use household aluminum foil, or make your conductive paint out of a few ingredients for a fraction of the cost.
Does guitar shielding need to be grounded?
All of the shielding must be in contact with ground. There are several ways to apply a ground to a shielding network; when dealing with copper shielding foils, the ground wire can be soldered directly to it. If your volume pot housing is in contact with the foil, a ground jumper is not necessary.
Do telecasters need shielding?
If you’re a live performer, we recommend shielding the guitar. Here, we’re talking about a Fender Telecaster that normally uses two single-coil pickups, so it’s safe to say it will benefit from shielding. If you use humbuckers and live in a small household area, it’s unlikely you’ll see much difference.
How do you shield a tele?
Telecaster Shielding How-To
- Step 1: Strip It Down. Remove everything: strings, pickguard, control plate, bridge plate.
- Step 2: Coat the Cavities. Coat each of the cavities with the shielding material.
- Step 3: Coat the Pickguard and Control Cover.
- Step 4: Remove the Ground Loops.
- Step 5: Reassemble the Guitar.
Are fenders shielded?
Fender started shielding across all lines around 2008 and, even now, their jobs are questionable. They are far more consistent now than they once were but I expect to shield every Fender I buy.

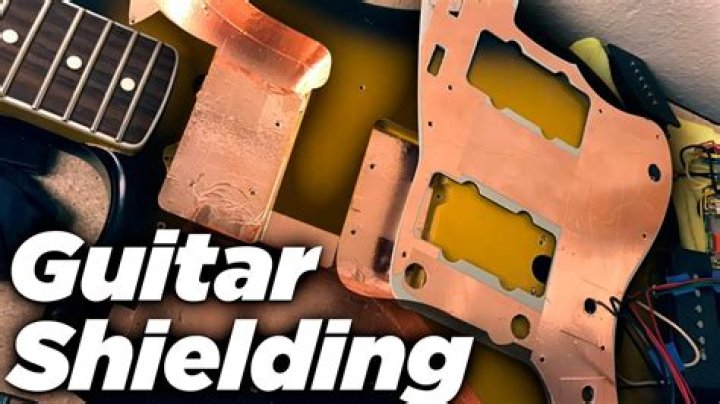

How do you shield a guitar wiring?
There are two main methods to shield a guitar – shielding graphite paint (conductive paint) or more commonly, aluminium or copper tape. Many guitars will come from the factory with conductive paint covering the control and pickup cavities but this is not always the most effective way to shield a guitar.
What is copper shielding for in guitar?
Creating a Faraday cage around the electronics and wiring helps to protect the guitar from external devices and reduces unwanted feedback by blocking incoming frequencies. It’s not just shielding that helps to combat this feedback – insulated wire and superior quality components all help.
How do you attach a guitar shield to the ground?
just connect the ground from the output jack or a wire soldered to the top of the pots (which on most guitars are also connected to ground) and connected it to your shielding… And by the way, copper accepts solder. That’s why wires are either copper or silver.
What is guitar shielding and how does it work?
Guitar shielding refers to enclosing the electronics in sort of a ‘cage’, which rejects stray radio frequency interference. You can do this a few ways. Guitar shielding refers to enclosing the electronics in sort of a ‘cage’, which rejects stray radio frequency interference. You can do this a few ways.
How much does it cost to shield a guitar with foil?
Aluminum foil tape for guitar shielding is not very expensive, and copper foil tape is only a few dollars more. Shielding paint will be up to about 5x more expensive than foil tape, and can cost up to $50 or more depending on which brand you choose to use.
Can I DIY DIY a shielded guitar cavity kit?
Shielding kits are often for sale online, but here are some excellent DIY methods you can use to get the job done yourself. What is a Shielded Guitar Cavity? A shielded cavity is when we coat all surfaces inside the guitar with a shielding paint or shielding foil.
Is it better to shield your guitar with copper tape or paint?
Shielding paint looks better, but it is expensive. It isn’t a good investment unless you have more than a handful of guitars to shield, and it isn’t something you can just pick up at the local hardware store either. Here are the strips of copper tape I started with…
