Design a beam width based on the fact that the typical width of an LVL beam is 1 3/4 inches. The width can be increased by laminating in multiples of 1 3/4 inches. Beam width should be 1/4 to 1/3 beam depth.
How do you calculate beam loads on a floor?
Multiply the loading per square foot by the area in square feet of the surface which the beams will be supporting. Divide by the number of beams which will be installed to get the loading per beam.
What size LVL do I need for a 24 foot span?
For 24 foot span, size of simply supported beam for 2-3 storey residential building, using thumb rule, is about 15″×18″ in which beam width is 12″ and beam depth is 15″, if width will be kept 12″, depth should increased, then beam size 12″×24″ can be used, providing with 4nos of 16mm bar at top, 4nos of 20mm bar at …
How far can you span a LVL beam?
Due to its strength, an LVL beam can span up to 60 feet and is much stronger than traditional lumber. Generally, you can find LVL beams in 4-foot increments starting at 24 feet and going up to 44 feet long, with special orders up to 60 feet. LVL beam thickness is usually between 1 ¾ and 7 inches.
Can you use LVL for floor joist?
It can be used as window and garage door headers, floor beams, floor joists, roof beams and roof joists/rafters.
How to size LVL beam?
Measure your total span between members and ensure that it is not greater than 60 feet.

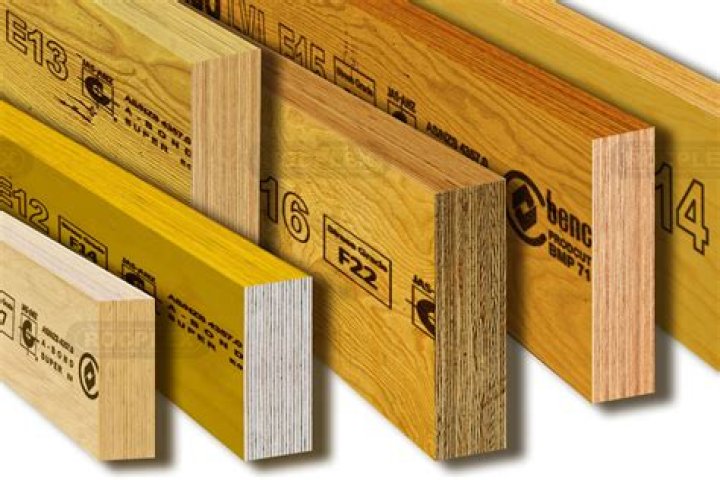

What sizes do LVL beams come in?
LVL’s come in 1-3/4 inch wide beams always. Whereas PSL beams come in many width from 1-3/4 inch up to 9 inches wide (0r wider). The last photo shows a PSL beam, which shows the shorter strands/fibers.
How long can a LVL beam span?
For example, if you are using an LVL beam with two plies of 16 inches or three plies of 14 inches with the columns spaced 14 feet from one another, the maximum span size is 36 feet. This span size only applies to single floors; floors supporting additional stories or roofs require sturdier construction and use different LVL span size charts.
How to calculate load bearing beams?
How do you calculate the load bearing capacity of a beam? Calculate the weight the beam must support. Calculate the maximum bending moment for the wooden beams. Calculate the beam’s section modulus by dividing the maximum bending moment by the allowable fiber stress for wooden beams. Calculate the section modulus for the different beams which you could use.
