The solution to this problem is to adjust the placement of the firewalls or internal routing such that traffic in both directions flows through the same firewall, even if incoming traffic enters the network through a different router than the router that handled the matching outgoing traffic.
What is the purpose of loopback interface in Cisco router?
The loopback interface is useful in testing and managing a Cisco IOS device because it ensures that at least one interface will always be available. For example, it can be used for testing purposes, such as testing internal routing processes, by emulating networks behind the router.
How do I find the QoS policy on a Cisco router?
Verifying QoS Configuration on a Cisco Catalyst 3750 Series Switch
- enable.
- show running-config class-map.
- show running-config policy-map.
- show policy-map interface.
- show mls qos maps.
- show mls qos queue-set.
- show mls qos interface queuing.
- show platform port-asic stats drop statistics.

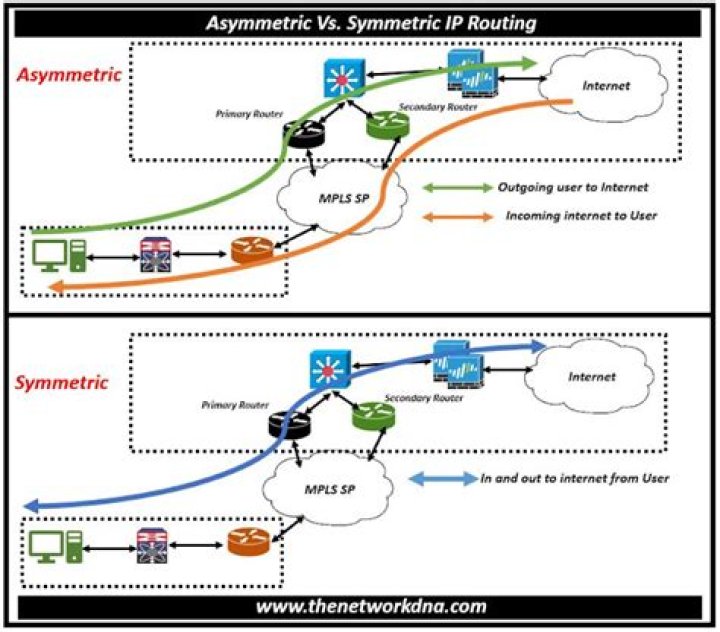

What are some of the problems with asymmetric routing?
Asymmetric routing is not a problem by itself, but will cause problems when Network Address Translation (NAT) or firewalls are used in the routed path. For example, in firewalls, state information is built when the packets flow from a higher security domain to a lower security domain.
Why is asymmetric routing bad?
Asymmetric routing can be bad, mainly because you risk packets being delivered in the wrong order, but again, depends greatly on the topology you’re talking about.
What is the purpose of a loopback interface?
The loopback device is a special, virtual network interface that your computer uses to communicate with itself. It is used mainly for diagnostics and troubleshooting, and to connect to servers running on the local machine.
What is loopback interface used for?
The loopback interface is used to identify the device. While any interface address can be used to determine if the device is online, the loopback address is the preferred method. Whereas interfaces might be removed or addresses changed based on network topology changes, the loopback address never changes.
What is loopback diagnostic on Cisco router?
Loopback Diagnostic. The loopback diagnostic command under an ATM interface of a Cisco router causes traffic going out of the interface to come back to the router. Figure 1 and Example 1 illustrate how that process. To see loopback information for non-ATM interfaces, please click here and scroll down to the section on Special Serial Line Tests.
What is a loopback interface and what is it used for?
A loopback interface has many uses. Loopback interface’s IP Address determines a router’s OSPF Router ID. A loopback interface is always up and allows Border Gateway Protocol (BGP) neighborship between two routers to stay up even if one of the outbound physical interface connected between the routers is down.
Do I need a MAC address for the loopback interface?
Whoever needs to communicate with the loopback interface need to go through another physical interface enabled with IP routing. So, communication between that physical interface and the loopback interface happens in software (no need of MAC). Hence you do not need a MAC address for the loopback interface.
What is the loopback Diagnostic command under ATM interface?
The loopback diagnostic command under an ATM interface of a Cisco router causes traffic going out of the interface to come back to the router. Figure 1 and Example 1 illustrate how that process.
