Starters are used to protect DC motors from damage that can be caused by very high current and torque during startup. They do this by providing external resistance to the motor, which is connected in series to the motor’s armature winding and restricts the current to an acceptable level.
What are the different types of starters of DC motor?

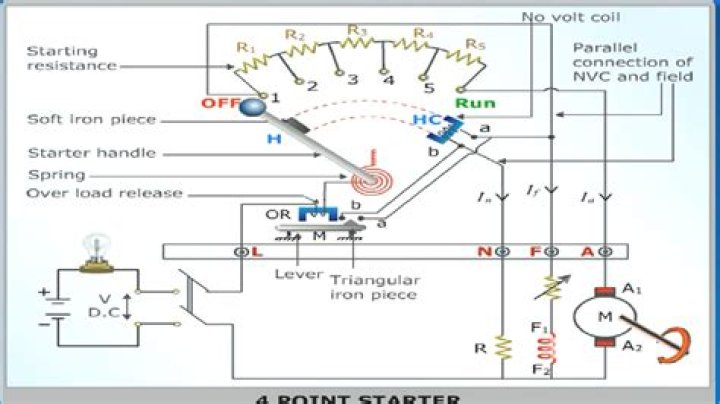

There are mainly 3 types of DC motor starters, such as 2 point starter, 3 point starter and 4 point starter. The basic concept behind every DC motor starter is adding external resistance to the armature winding during starting.
Is it mandatory to use a starter circuit for a DC motor?
A large DC motor will pick up speed rather slowly due to its large rotor inertia. Hence, building up the back emf slowly causing the level of high starting current maintained for quite some time. This may cause severe damage. To avoid this, a suitable DC motor starter must be used.
Why a DC motor should not be started without a starter?
DC motor will pull large current when started directly without starter. This is because rotor is stationary and there no back emf to oppose inrush of current. Large starting current drawn by the DC motor will dip voltage momentary that affects other potential equipment operating on the same line.
How many types of starter motors are there?
Four particular varieties of motor starters are: Across-The-Line, the Reversing Starter, the Multispeed Starter, and the Reduced Voltage Starter. Across-the-line or Full Voltage Non-Reversing (FVNR) is the most commonly used general purpose starter. This starter connects the incoming power directly to the motor.
What is the type of winding used in DC starter motor?
In a DC Shunt motor the field winding is connected in parallel (shunt) with the armature. The shunt winding is wound from many turns of small copper wire and since it is connected across the DC field supply, its field current will be constant.
How many types of starters are there?
The two main types of starters are Manual Starters and AC Magnetic Motor Starters, commonly known as Motor Starters. The manual starter is operated manually.
What is a 2 point starter?
A two-point starter is used for starting dc motor which has the problem of over-speeding due to loss of lod from its shaft. Such a starter is shown in figger. Here for starting the motor, the control arm is moved clockwise from its OFF position to the ON position against the spring tension.
Can a DC motor start without starter?
Motors below 1 HP (0.7457) is directly connected to the power supply without starter because their armature resistance is very high and they have the ability to afford and pass higher current due to high resistance. So the armature windings are safe from the high starting current while staring a motor.
What are the types of DC motor?
There are 4 main types of DC motors:
- Permanent Magnet DC Motors. The permanent magnet motor uses a permanent magnet to create field flux.
- Series DC Motors. In a series DC motor, the field is wound with a few turns of a large wire carrying the full armature current.
- Shunt DC Motors.
- Compound DC Motors.
What are the types of DC motors?
As mentioned earlier, any motor consists of two parts viz. stator and rotor. Based on the configuration and construction, there are three types of DC motors: brushed motor, brushless motor and servo motor.
What is DC motor operation?
DC Motor Operation. Coils of wire on the rotor carry a d.c. current which generates a magnetic field. A stator magnetic field is created using either permanent magnets or electrical field windings. Any current-carrying conductor placed within an external magnetic field experiences a force. Torque is produced in the motor by this mechanism.
What is DC motor control?
Control can mean bi-directional control of the dc motor, usually with speed control included. That is accomplished by use of an H-bridge, basically 4 power transistors arranged so that current can flow through the motor, usually under control of a microcontroller, either direction as desired.
What is DC motor speed control?
Speed Control of DC Motor. Speed control means intentional change of the drive speed to a value required for performing the specific work process. Speed control is a different concept from speed regulation where there is natural change in speed due change in load on the shaft.
