Stands for “General Purpose Input/Output.” GPIO is a type of pin found on an integrated circuit that does not have a specific function. These pins act as switches that output 3.3 volts when set to HIGH and no voltage when set to LOW. You can connect a device to specific GPIO pins and control it with a software program.
How do I set up GPIO pins?
Configure Pin as Input and Read Its Value Show the location of all the GPIO pins on your device. Display the AvailableDigitalPins . Connect your digital device to the first GPIO pin available, for example GPIO 4 . Configure pin GPIO 4 as a digital input.
What are the 4 pins on Raspberry Pi?
A Raspberry Pi 4 board has 40 pins on it. Among these pins, we have four power pins on the Raspberry Pi, two of which are 5v pins and another two are 3.3v pins. The 5v power pins are connected directly to the Raspberry Pi’s power input and we can use these pins to run low power applications.
What can I use GPIO for?
GPIO stands for General Purpose Input/Output. It’s a standard interface used to connect microcontrollers to other electronic devices. For example, it can be used with sensors, diodes, displays, and System-on-Chip modules.
What precautions should be taken with Raspberry Pi GPIO pins?
The MOST IMPORTANT thing is NOT to connect anything >3.3V to a pin. Make sure you don’t connect the 5V! In general you should avoid making connections with the Pi running (at least until you get more experience). You should try running a LED (through a resistor – say 470Ω).
How many pins out of 26 pins are GPIO pins in raspberry?
40 pins
The Raspberry Pi offers up its GPIO over a standard male header on the board. Over the years the header has expanded from 26 pins to 40 pins while maintaining the original pinout. If you’re coming to the Raspberry Pi as an Arduino user, you’re probably used to referencing pins with a single, unique number.
What is push pull pin?
A push-pull GPIO has the ability to both source and sink current. With a push-pull GPIO, a transistor connects to VCC or GND to drive a signal high or low. When the output goes low, the signal is actively “pulled” to ground, and when the output goes high it is actively “pushed” to VCC.
How many steps are there for initialising a pin?
Beginning Arduino (Ports, Pins and Programming) : 6 Steps – Instructables.
What is GPIO SDA?
SDA (I2C1 Data) is one of the i2c pins on the Pi, learn more about i2c. SDA includes a fixed, 1.8 kΩ pull-up to 3.3v, which means this pin is not suitable for use as a general purpose IO where no pull-up resistor is desired.
What is GPIO used for?
A GPIO (general-purpose input/output) port handles both incoming and outgoing digital signals. As an input port, it can be used to communicate to the CPU the ON/OFF signals received from switches, or the digital readings received from sensors.
How many pins does a Raspberry Pi have?

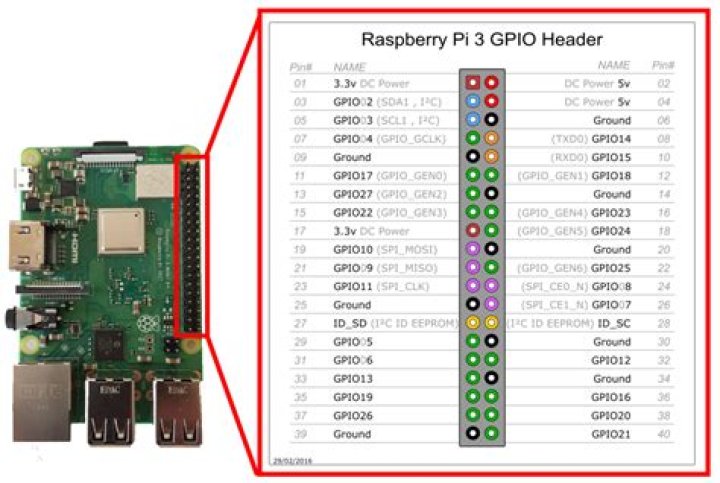

If you’re an owner of a Raspberry Pi B+, 2, zero or 3, then you will have 40 pins in total. The earlier models such as the Raspberry Pi B and similar all have 26 pins. See below for the Raspberry Pi GPIO pinout diagram. We have included all three iterations of the Pi for the pinout diagram.
From Wikipedia, the free encyclopedia A general-purpose input/output (GPIO) is an uncommitted digital signal pin on an integrated circuit or electronic circuit board which may be used as an input or output, or both, and is controllable by the user at runtime. GPIOs have no predefined purpose and are unused by default.
How GPIO pins work. A GPIO pin on an IC is typically connected to some other chip, and performs some function by reading or changing its state. GPIO pins can act as either an: input – to read digital signals from a circuit; that is, when configured for input mode, they read the current state as either “high” or “low”.
What are GPIO pins?
A GPIO port is a group of GPIO pins (typically 8 GPIO pins) arranged in a group and controlled as a group. GPIO capabilities may include: GPIO pins can be configured to be input or output. GPIO pins can be enabled/disabled. Input values are readable (typically high or low) Output values are writable/readable.
