- Restart or turn on the PC, and look for a message such as “Press [X] to Go to Setup” or “Press [X] to Enter BIOS.”
- Follow the instructions on the boot screen to go to setup.
- Use the arrow pad to select an option such as “Advanced,” “Integrated Peripherals” or “Main.” Press “Enter.”
What are IDE channels?
Each IDE channel is a independent data channel hooked into the south bridge. With IDE, this supports two disks (master and slave) which share the bandwidth on that channel.
What is Primary IDE Master in BIOS?
If you have a single IDE cable, with two hard drives on it one must be set to master and one to slave. The master is the first or primary, hard drive and the slave is the second, or secondary drive.
What is the IDE configuration option used for?
IDE—This setting makes the SATA drive act like PATA (IDE) hard disk drives that were once common in Windows-based systems. When this setting is used, the SATA drive can’t use advanced features, such as native command queuing and hot-plugging, and SATA 3Gbps and 6Gbps drives run at only 1.5Gbps.
How do I change my IDE channel master to zero?
Im guessing the older legacy IDE ribbon cable is taking channel 0 so there is no way to change that, its just the way the motherboard was made. If your wanting a HDD as master 0 your going to have to find an old IDE harddrive and plug it into the master port on the IDE cable and move the DVD to the slave.
How do I change my primary master IDE?
Connect your hard drive to the primary IDE cable. If you look closely at the IDE slots on the motherboard, they should be numbered (IDE0, IDE1…etc). The master position on the cable is on the end. Then, make sure the jumper is set as master on the hard drive.
What is primary IDE channel?
When referring to an IDE/ATA hard drive, the primary channel is what the first and second drive connect to the motherboard or interface card. If the connections are color-coded, the secondary channel is usually black, and the primary is blue.
What is IDE configuration?
IDE (Integrated Drive Electronics) is an electronic interface standard that defines the connection between a bus on a computer’s motherboard and the computer’s disk storage devices.

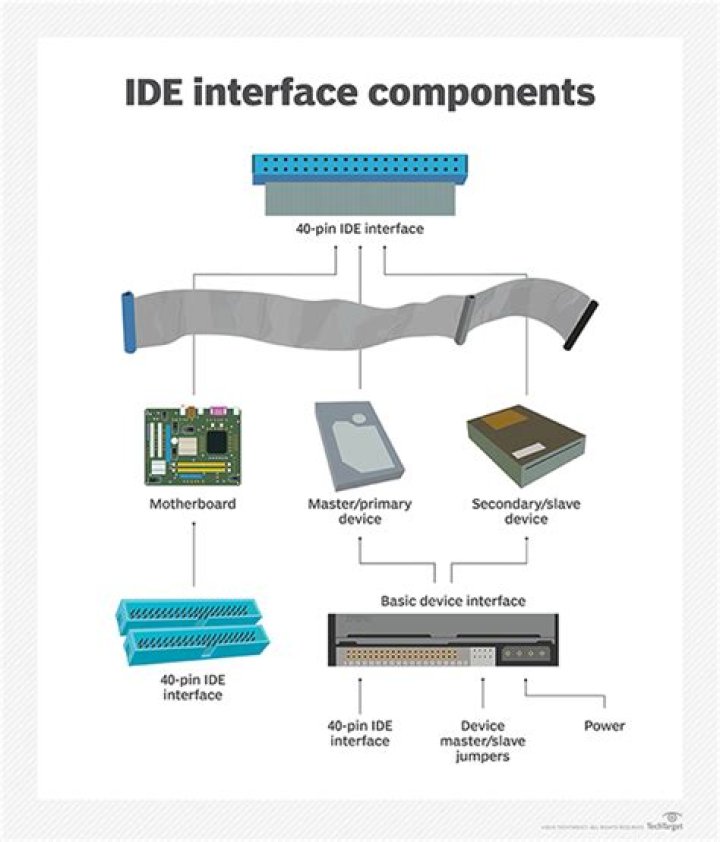

What is IDE interface?
IDE is an interface standard introduced in the year 1986. It is for connection of storages devices such as Hard Disk Drives (HDD), Solid State Drives (SSD) and CD/DVD drives to the computer. In IDE data transfer speed ranges from 100 MB/s to 133 MB/s. It is a parallel connector.
What is Primary IDE Master not detected?
If the system cannot find an IDE device or drive in the primary position, it may be due to a configuration error. However, it should automatically detect the drive in one of the secondary channels and boot the system after a momentary pause. Reconnect the drive to the correct SATA port to resolve this issue.
What is primary and secondary IDE?
Allows you to connect a CD-ROM, zip drive, tape drive or other IDE device to the system. The location of the secondary and Primary IDE controllers are usually on the center edge of the motherboard towards the front of the computer. IDE0/Primary is usually the first slot and the secondary is behind it.
