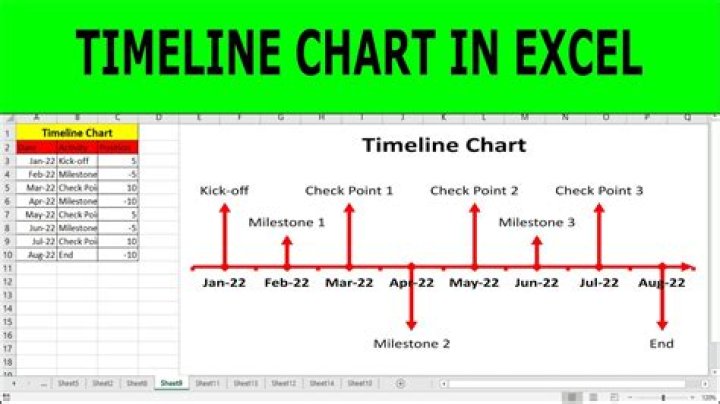

Steps to Create Milestone Chart in Excel
- Get the data in place.
- Go to Insert –> Charts –> Line Chart with Markers.
- Go to Design –> Select Data.
- In the Select Data Source dialogue box, click on Edit in Horizontal (Category) Axis Labels and select dates in Column E.
- In Select Data Source dialogue box, click on Add.
How do I autofill monthly dates in Excel?
Use the Fill Handle Select the cell that contains the first date. Drag the fill handle across the adjacent cells that you want to fill with sequential dates. at the lower-right corner of the cell, hold down, and drag to fill the rest of the series. Fill handles can be dragged up, down, or across a spreadsheet.
How do I make a timeline chart in history?
Tips for Creating a Timeline
- What does your timeline depict? Every timeline should have a title identifying the project or historic events it illustrates.
- Make the timeline. Decide what segment of time you want to illustrate.
- Determine the scale of the timeline.
- Missing time.
- Add events.
- Add visuals.
How do I change the start date on a Gantt chart in Excel?
On the Project menu, click Project Information. In the Start date box, enter the new date. If your task has an incorrect actual start date, select the task, and then on the Tools menu, point to Tracking, and then click Update Tasks. Under Actual, change the date in the Start box.
How do I plot dates in Excel?
In the chart, right-click the category axis, and then click Format Axis. In the Format Axis pane, select the Axis Options tab. Expand Axis Options, and then under Axis Type, make sure Date axis is selected. Under Units, next to Base, select Days, Months, or Years.
How to make a standard Excel bar chart based on StartDate?
Make a standard Excel Bar chart based on Start date 1 Select a range of your Start Dates with the column header, it’s B1:B11 in our case. Be sure to select only the cells… 2 Switch to the Insert tab > Charts group and click Bar. 3 Under the 2-D Bar section, click Stacked Bar. More
How to calculate end date from start date and duration in Excel?
Enter this formula: =DATE(YEAR(A2),MONTH(A2)+B2,DAY(A2)) into cell C2, and then drag the fill handle down to the cells you want to fill this formula, and the end date has been calculated at once, see screenshot: Note: In this formula: A2 is the start date and B2 is the duration. Calculate end date from start date and duration(years):
How do I change the date on a chart plot in Excel?
Right-click anywhere within the chart plot area (the area with blue and orange bars) and click Select Data to bring up the Select Data Source window again. Make sure the Start Date is selected on the left pane and click the Edit button on the right pane, under Horizontal (Category) Axis Labels.
How do you create a date range in Excel?
For setting date ranges in Excel, we can first format the cells that have a start and end date as ‘Date’ and then use the operators: ‘+’ or ‘-‘to determine the end date or range duration. Let us see how adding a number to date creates a date range.
