To configure the BGP peer sessions:
- Configure the interfaces to Peers A, B, C, and D.
- Set the autonomous system (AS) number.
- Create the BGP group, and add the external neighbor addresses.
- Specify the autonomous system (AS) number of the external AS.
- Add Peer D, and set the AS number at the individual neighbor level.
How do I reset BGP neighbor?
The most straightforward way to reset a BGP session is with the clear ip bgp command. clear ip bgp is the original version of the command. There’s also clear bgp ipv6 unicast for IPv6 BGP sessions and the corresponding clear bgp ipv4 unicast for IPv4 BGP sessions.
How do I disable BGP?
You can disable a BGP session by using the Google Cloud Console, the update-bgp-peer command, or the API. BGP sessions are enabled by default. If disabled, any active session with the BGP peer is shut down, and all associated routing information is removed.
How is BGP established?

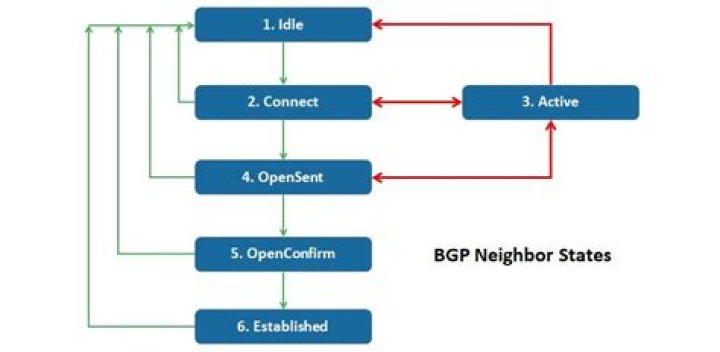

BGP forms a TCP session with neighbor routers called peers. BGP uses the Finite State Machine (FSM) to maintain a table of all BGP peers and their operational status. The BGP session may report in the following states: Idle.
Why is BGP stuck in OpenSent?
OpenSent: In this state BGP will be waiting for an Open message from the remote BGP neighbor. The Open message will be checked for errors, if something is wrong (incorrect version numbers, wrong AS number, etc.) then BGP will respond with a Notification message and jumps back to the Idle state.
When and how should I reset a BGP session?
When we change the BGP routing policy (changing the attributes or adding filters) we need to reset the BGP session before the new policy takes effect. This is no problem in a lab but it’s something you don’t want to do in a production network.
Why is BGP stuck in active state?
BGP stuck in ACTIVE state. The possible reasons are: TCP connection is initiated and it is in ACTIVE state i.e. LISTENING state.It is waiting for the TCP connection to complete. Peer address configured incorrectly on either router.
What is BGP graceful shutdown?
The BGP Graceful Shutdown feature reduces or eliminates the loss of inbound or outbound traffic flows that were initially forwarded along the peering link that is being shut down for maintenance. This feature is primarily for PE-CE, PE-RR and PE-PE links.
How to disable a BGP neighbor for maintenance?
Below is from BGP command ref: To disable a neighbor or peer group or to gracefully shut down a link for maintenance, use theneighbor shutdown command in router configuration mode or address family configuration mode. To reenable the neighbor or peer group, use the no form of this command. Good luck with the maintenance.
How to shut down BGP without removing the associated peer configuration?
You can administratively shut down particular BGP neighbors or peer groups without removing their configuration from BGP. You can also administratively shut down BGP globally. Routers provides for the shutdown of a BGP peering session without removing the associated peer configuration.
Does the eBGP neighbor care about the BGP router ID?
IMHO, the eBGP neighbor does not care too much about your BGP router ID. But the update source address is important! As it was not configured on your old router, it was using the IP address of the interface nearest to the neighbor, I believe. Possibly you are using a different connection now or a different IP address on the interface?
How can I ping my BGP neighbours?
Instead of beating around the bush, I would recommend you to setup a confcall with your BGP Neighbour’s Admin and remove entire BGP config from both ends. Check if you can ping 62.12.4.8 and telnet the peer on 179 port. Once that is done, Reconfigure the routers with only below commands.
