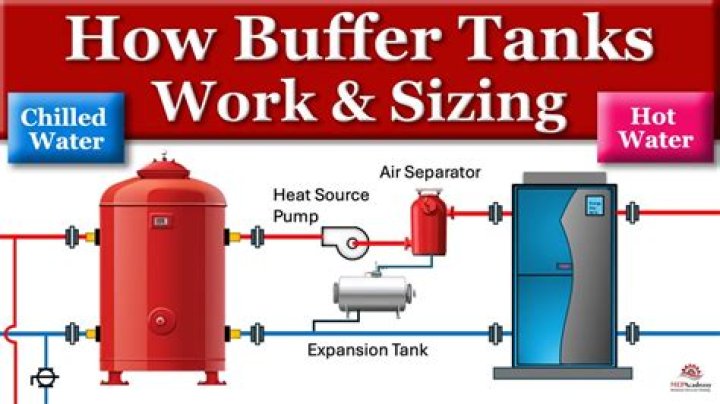

To properly size a buffer tank, you need to know the following:
- The minimum desired run time for your boilers – typically 10 minutes for most condensing boilers.
- The minimum output (Btu/h) of your particular boilers.
- The minimum system load (Btu/h) based on the zone with the least possible demand.
What size buffer tank do I need?
A buffer tank will need to hold approximately 15 litres per 1kW of heat pump capacity. On average a typical 3 bed home will require an output of 10kW so this would require a buffer tank sized at approx 150 litres.
When should you use a buffer tank?
A buffer tank is typically used when there is a variable cooling requirement. In such applications the tank is used as storage to cover peak loads or in situations when a surge in demand exceeds the capacity of the cooling system.
Is a buffer tank the same as an expansion tank?
An expansion tank allows for the expansion and contraction of the system when it heats up and cools off and provides head pressure for the circulation pump. A buffer tank adds volume to the system and helps to prevent short cycling.
How do you size a heating buffer vessel?
Typical manufacturer recommendations for a buffer vessel with an ASHP are: 1) Size at 10% of the heating water flow rate of the heat pump per hour. 2) A volume of approximately 8% is sufficient for heat pumps with two performance levels. 3) Limit to less than 30% of the heating water flow rate per hour.
How do you calculate the volume of a chilled water system?
Similarly, for chilled/hot water systems that are cooled/heated by a heat exchanger, the estimated total system volume is determined by multiplying the circulating pump capacity by 3. For example, for a circulating pump capacity of 150 USG/min, the estimated total system volume would be 150 X 3 = 450 USG.
What is a chilled water buffer tank?
Laars Chilled Water Buffer Tanks are designed to increase water volume capacity, in relation to the chiller capacity. These tanks increase the capacity of a chilled water system and help stabilize the return water temperature. This results in fewer cycles of the compressor and better temperature control.
What is the purpose of a buffer tank?
The primary role of a buffer tank is usually to keep a minimum volume of water ‘in circuit’ at times when the heating load is very low. This prevents the heat pump from short cycling and provides a bypass route to maintain the minimum flow rate through the heat pump if most of the heating zones have shut down.
What is an ASME buffer tank?
Amtrol ASME Buffer Tanks add capacity to non-potable, closed systems to help reduce cycling, improve temperature control and provide more consistent system operation. Available for chilled water and hot water applications, these Buffer Tanks are all made in the USA at our ISO 9001:2008 registered facilities.
What is a heat-Flo buffer tank?
The Heat-Flo buffer tanks are a simple, cost effective way to improve overall system efficiency by reducing unnecessary equipment short cycling. The recommended capacity or volume of a buffer tank is based on four variables: The duration of the heating or cooling source “on time.” (Minutes)
What is the maximum pressure for a buffer tank?
BUFFER TANKS Chilled Water Buffer Tank CWBT Series • Meets all ASME Section VIII, Division I standards. • Available up to 1,040 gallons. • Connections from 3″ to 12″. • Internal baffle helps properly circulate water. • Maximum Working Pressure: 125 or 150 psig.
What is the minimum boiler output and cycle time?
Boiler Cycle Time: 5 minutes Minimum Boiler Output: 200,000 BTU’s Minimum System Load: 25,000 BTU’s Temperature Differential: 170° – 180° = 10° F Pipe Size: 2″ Relief Valve: 50 PSI 5 (200,000 – 25,000) 10 x 500 Recommendation: HWBT200-2-125
