To test the capacitor with a multimeter, set the meter to read in the high ohms range, somewhere above 10k and 1m ohms. Touch the meter leads to the corresponding leads on the capacitor, red to positive and black to negative. The meter should start at zero and then moving slowly toward infinity.
How do you test a dielectric capacitor?
Connect the probes to the capacitor leads (for a polarized capacitor, keep their polarity in mind). If there is dielectric breakdown, the resistance value will be zero or close to zero. If the capacitor operates OK, it will show some resistance value on the multimeter display, which will gradually grow, without surges.
What does the Y capacitor in a SMPS do?
Y-capacitors are used to reduce electro magnetic interference (EMI) in SMPS. This is a capacitor connected between primary and secondary of the SMPS transformer to bypass EMI currents and thus preventing them to reach mains port.
How do you know if a capacitor is bad?
Here are some common symptoms of a bad AC capacitor.
- AC Not Blowing Cold Air. An air conditioner that doesn’t blow cold air is one of the first signs of a problem many homeowners notice.
- High and Rising Energy Bills.
- Humming Noise.
- Old HVAC System.
- AC Turns Off On Its Own.
- AC Doesn’t Turn On Immediately.
- AC Won’t Turn On.

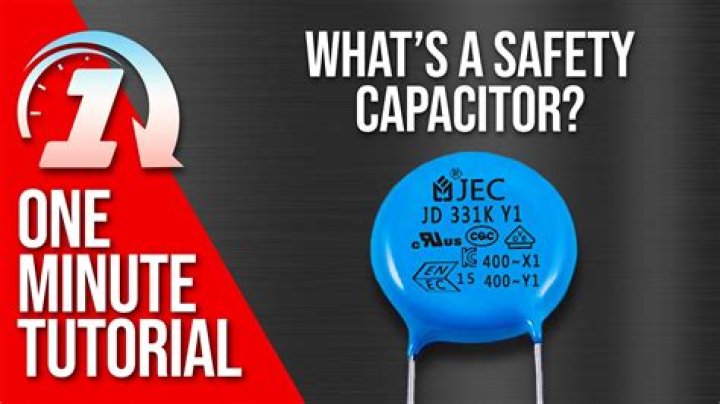

What is a safety capacitor?
Safety capacitors are high-voltage, circuit-specific capacitors, commonly rated at 250 VAC. This product is designed to handle high voltage impulses and transients, as well as protect users from harm due to electrical shock.
How do you test a capacitor with a multimeter?
How do you test a capacitor with a digital multimeter?
Connect the multimeter probes to the leads of the capacitor (red to positive and black to negative in case of polarized capacitors). The Digital Multimeter will show a reading of resistance on the display and soon it will display the resistance of an open circuit (infinity).
How to test capacitors in MFD?
Now, measure the voltage across the capacitor and divide the amperage x 2652 by that voltage to find the capacitance in MFD. If the under load MFD is less than 10% low, we suggest replacement. If it is over the rating, it is often a measurement error. If a capacitor measures weak via under load test, go ahead and perform the bench test.
What is bench test capacitors?
Bench testing is simply removing both leads from the run capacitor after safely disconnecting power and discharging the capacitor. You then place a meter designed to test capacitance across the terminals and note the reading.
What should I check before using a self-tapping capacitor?
Always check before using self-tappers to confirm that you are not in any danger of puncturing the coil. At this time, reattach the wires onto the top of the dual run capacitor. Ensure that the common, the HERM (compressor), and the FAN are connected to the capacitor.
