Calculating Load
- Add together the wattage capacity of all general lighting branch circuits.
- Add in the wattage rating of all plug-in outlet circuits.
- Add in the wattage rating of all permanent appliances (ranges, dryers, water heaters, etc.)
- Subtract 10,000.
- Multiply this number by .
- Add 10,000.
What is electrical load scheduling?
The electrical load scheduling is the process of estimating the instantaneous loads operating in an installation. The load schedule provides the load for the particular installation in terms of apparent, reactive and active power (kVA, kVAR and kW) and usually carried out at the sub facility area or at the switchboard.
What is an electrical schedule *?
Electrical schedule is a list or a plan of a building providing information of number of points in each room.
How do you calculate electrical load in a house?
Compare the wattage of your air conditioner and furnace. Since you only use one at a time, add only the larger wattage rating to your equation. Divide the resulting number of watts by volts (most homes use 220 volts) to get the number of amps, or the electrical load.

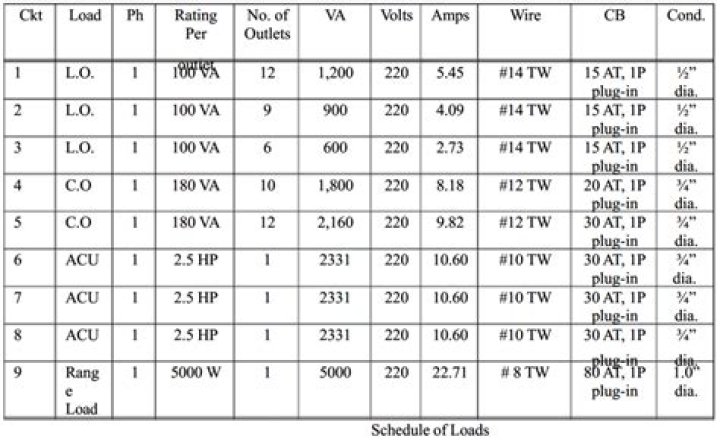

What is scheschedule of loads?
Schedule of loads are just a summary of data to easily identify and facilitate the necessary values and equipment rating to be used in any electrical installation. Any data given in the schedule of loads were backed by calculation based on a well settled electrical principles and code requirements. Computations. Circuit 1:
What is the system voltage for the schedule of loads?
The system voltage of this example is 220 VAC, 60 Hz. Schedule of loads are just a summary of data to easily identify and facilitate the necessary values and equipment rating to be used in any electrical installation.
How do you calculate electrical load on a circuit?
Calculating Load. Add together the wattage capacity of all general lighting branch circuits. Add in the wattage rating of all plug-in outlet circuits. Add in the wattage rating of all permanent appliances (ranges, dryers, water heaters, etc.) Subtract 10,000. Multiply this number by .40. Add 10,000.
What is the maximum load capacity of an electrical load?
Generally, it’s recommended that the load never exceeds 80 percent of the electrical service’s capacity. To use the math, you need to understand the relationship between watts, volts, and amps. These three common electrical terms have a mathematical relationship that can be expressed in a couple of different ways:
