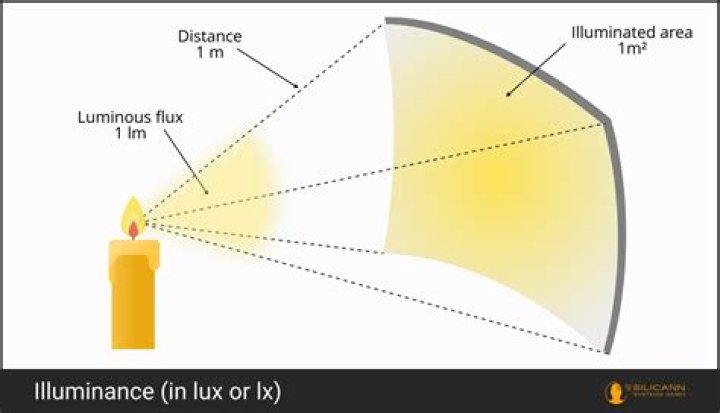

The equation of the illuminance, E, of a small light source is E = P/ 4(pie)d^2, where P is the luminous flux (in lumens, lm) of the source and d is its distance from the surface.
What is point horizontal illuminance?
Horizontal Illuminance – Horizontal illuminance at a point is a measure of the lumens incident on the pavement divided by the area. The units are lumens per square meter (lux). The grid is located on the same points as the roadway luminance grid.
What is horizontal illumination?
Horizontal illuminance describes the amount of light landing on a horizontal surface, such a desk, and vertical illuminance describes the illuminance landing on a vertical surface, such as a wall. Illuminance values for lighting applications depend on how complex the visual tasks are being performed.
What is a horizontal Footcandle?
Horizontal Footcandles – The amount of light being received on a horizontal surface such as a roadway or parking lot pavement.
How do you calculate the illuminance of a room?
To determine the needed lumens, you will need to multiply your room square footage by your room foot-candle requirement. For example, a 100 square foot living room, which needs 10-20 foot-candles, will need 1,000-2,000 lumens. A 100 square foot dining room, which needs 30-40 foot-candles, will need 3,000-4,000 lumens.
Which equation below is used to calculate the illuminance at a point?
Illuminance (E) = lumens / area (sq. ft.)
How do you calculate vertical illuminance?
We measure vertical illuminance the following way: This Vertical Illuminance and Horizontal Light Measurement can be withdrawn and calculated via lighting software, such as DIALux. Ev (Illuminance) = (1/d2)* sin y (gamma). This is the most standard equation.
How is luminance calculated in DIALux?
Re: How to calculate luminance L in dialux evo 9 If you want to get the luminances [cd/m2] on the outside of the building, you only need to select the floor element or another surface (like wall of the building) in the “Calculation object” tool and you will automatically receive luminance results.
What is vertical and horizontal illuminance?
The horizontal measurement is known as the horizontal illuminance and is the amount of light that lands on a horizontal surface, such as a tabletop. The vertical measurement is know as the vertical illuminance and is the amount of light that lands on a vertical surface, such as a wall.
How are footcandles calculated?
Multiply the Length times the Width of the Room to get the Room Square Footage. For example, if the room is 10 feet wide and 10 feet long, the Room Square Footage will be 100 square feet. A foot-candle is how bright the light is one foot away from the source.
How is indoor illuminance calculated?
Calculation in 8 steps
- Total wattage of fixtures: Total wattage of fixtures = Number of lamps x each lamp’s watt. Total wattage of fixtures = 2 × 32 = 64 Watt.
- Lumen per fixtures. Lumen per fixtures = Lumen efficiency (Lumen per Watt) x each fixture’s watt. Lumen per fixtures = 85 x 64 = 5440 Lumen.
- Number of fixtures.
How do you calculate the illuminance of a point in a room?
Lighting Calculation – Summary Calculate the amount of lumens you need. Multiply the area in square meters by the lux, or the area in square feet by the footcandles. Work out how many bulbs you need. Divide the number of lumens by the number of lumens delivered by each bulb.
How to calculate horhorizontal or vertical illuminance?
Horizontal or vertical Illuminance at a given point (point illuminance) can be calculated from Luminous Intensity and the relevant geometrical conditions from the following formulae: Cylindrical Illuminance Ez is the average of vertical illuminance in all directions (usually 4) around a point (on a vertical axis).
Illuminance can be calculated for any given point from the Luminous Intensity of a light source and the Distance between the light source and the illuminated surface. Horizontal or vertical Illuminance at a given point (point illuminance) can be calculated from Luminous Intensity and the relevant geometrical conditions from the following formulae:
What is vertical illuminance and how is It measured?
The vertical measurement is know as the vertical illuminance and is the amount of light that lands on a vertical surface, such as a wall. It is important to consider both vertical and horizontal illuminances in your lighting design. How Is Illuminance Measured?
What are the standard measures for illuminance?
The standard measures for illuminance are footcandles and lux. Light should be measured on both the horizontal and vertical planes. The horizontal measurement is known as the horizontal illuminance and is the amount of light that lands on a horizontal surface, such as a tabletop.
