Calculating Lateral Earth Pressure Coefficients The lateral earth pressure is equal to vertical earth pressure times the appropriate earth pressure coefficient.
What is lateral earth pressure in retaining wall?
Lateral earth pressure is the pressure that soil exerts in the horizontal direction.
Where is the maximum pressure on a retaining wall?

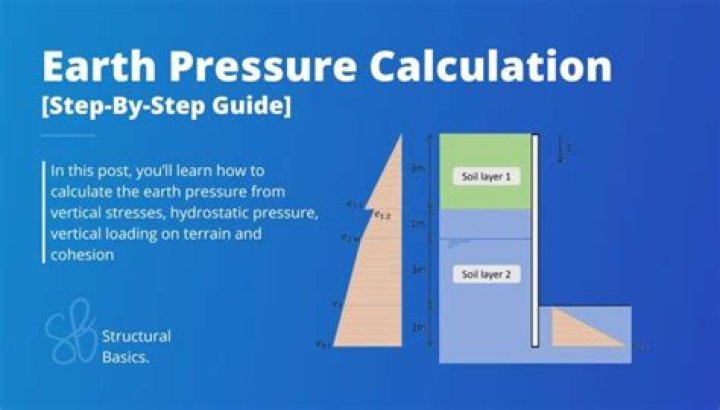

The soil pressure component is triangular behind the retaining wall. This means that the theoretical lateral earth pressure due to soil is minimum (zero) at the top of the wall, and maximum (KgH) at the bottom of the wall.
What are the two theories for calculating earth pressure on retaining walls?
There are two commonly uses lateral earth pressure theories: Coulomb (1776) and Rankine (1857).
When wall moves away from backfill earth pressure is?
Active state is developed when the wall moves away from the back fill. The active earth pressure is less than pressure at rest because the internal resistance is mobilize in the soil of back fill when wall moves away from the back fill.
How many types of lateral pressure are there?
There are three basic types of lateral earth pressure.
How do you calculate earth’s wall pressure?
Active and passive earth pressure Rankine’s theory states in general terms that the active earth pressure coefficient is: The active earth pressure at a depth h (m) due to a level fill of soil is therefore: The passive earth pressure (Ep), which equals Kp× h where Kp = the coefficient of passive earth pressure.
What angle should a retaining wall be?
You will need to angle the holes so that the post is on a lean towards the bank. The lean should be 1:10 – in other words, for every 100 mm you go up, the post should angle towards the wall 10mm. A purely vertical wall will start to sag over time, so this angle is important.
What are the different types of lateral earth pressure theory?
Lateral earth pressure may be one of the following 3 types.
- Active earth pressure.
- Passive earth pressure.
- Earth pressure at rest.
What are the different types of lateral earth pressure?
These three basic types of lateral earth pressures are discussed below:
- Active Earth Pressure:
- Passive Earth Pressure:
- Earth Pressure at Rest:
- Derivation of Expression for Earth Pressure at Rest:
What are lateral earth pressure supported structures?
Page (158)Ahmed S. Al-Agha Foundation EngineeringLateral Earth Pressure Introduction Vertical or near vertical slopes of soil are supported by retaining walls, cantilever sheet-pile walls, sheet-pile bulkheads, braced cuts, and other similar structures.
What is the difference between Rankine active earth pressure and lateral earth pressure?
The Rankine active earth pressure calculations are based on the assumption that the wall is frictionless. The lateral earth pressure involves walls that do not yield at all. However, if a wall tends to move away from the soil a distance Δx, as shown in the following Figure, the soil pressure on the wall at any depth will decrease.
What is lateral earth force at rest?
At Rest Lateral Earth Pressure: The wall may be restrained from moving, for example; basement wall is restrained to move due to slab of the basement and the lateral earth force in this case can be termed as” P\m”. 2.
What is the active pressure of a retaining wall?
The active pressure develops when the wall is free to move outward such as a typical retaining wall and the soil mass stretches sufficiently to mobilize its shear strength.
