The weight of any tube can be calculated with the following formulas. Simply multiply the appropriate alloy density by the calculation shown below of the required part….How to calculate the weight.
| Metric | Example |
|---|---|
| x | |
| π/4000 | |
| = | |
| weight | 1.209 kg |
How is MS Pipe weight calculated?
WEIGHT (KGS ) = 3.14 X 0.00000785 X ((diameter / 2)X( diameter / 2)) X LENGTH. Example : A Round of 20mm diameter and length 1 metre then the weight shall be. Dia (mm) X Dia (mm) X 0.002072 = Wt.
What is the weight of MS tube?
Mild Steel MS PIPE, Weight: 40 kg, Thickness: 4 mm
| Thickness | 4 mm |
|---|---|
| Material | Mild Steel |
| Weight | 40 kg |
| Pipe Section | Square |
| Minimum Order Quantity | 500 Kg |
How do you calculate the weight of a MS hollow round pipe?
As you know, 1ft. = 3.28m. Weight of the pipe for 1 ft. = 10.76 kg/ft.
How do you calculate Ms flat weight?
How to calculate the weight The weight of flat bar is easily calculated. Simply multiply the appropriate alloy density by the length, width, and thickness of the required part (see worked examples below)….Density of steel.
| Size (T x W) | Weight |
|---|---|
| mm | kg/m |
| 3 x 20 | 0.471 |
| 3 x 50 | 1.178 |
| 3 x 100 | 2.355 |
How is Ismc weight calculated?
Balajee Structurals (India) Ltd….Please Select an Metal Type.
| M.S.Channel / ismc channel weight calculation formula | ||
|---|---|---|
| Size | Weight in Kgs. Per Feet | Weight in Kgs. per Mtr. |
| ISMC 100 x 50 x 5 | 2.914 | 9.56 |
| ISMC 125 x 65 x 5.3 | 3.993 | 13.10 |
| ISMC 150 x 75 x 5.7 | 5.121 | 16.80 |
How do you calculate weight in Kg?
Weight Conversion (pounds, kilograms)
- Pound (lbs) / 2.2046 = Result in Kilograms (kg)
- Kilograms (kg) x 2.2046 = Result in Pound (lbs)
- 100 pounds (lbs) / 2.2046 = 45,36 kilos (kg)
- 100 kilos (kg) * 2.2046 = 220,46 pounds (lbs)
How is MS round bar weight calculated?
Weight is calculated by multiplication of volume and its density. Volume of round bar is equal to πD^2/4. H and its density is equal to 7850kg/m3, then its weight, Weight = πD^2/4.
How is MS sheet weight calculated?
∴ Weight of steel plate = Volume of steel plate x Density of steel. Weight of steel plate = 0.07 x 7850 = 549.5 Kg. Similarly, you can calculate the weight of different thicknesses of steel plates….Example 2:
| Thickness (mm) | Weight (Kg) |
|---|---|
| 8 | 62.8 |
| 10 | 78.5 |
| 12 | 94.2 |
| 14 | 109.9 |
Is code for MS pipe unit weight?
Mild Steel Pipe Dimensions, IS 1239, IS 3589, IS 4923.
Is code for MS flat weight?
Typically weight of mild steel flats
| Flat Size (mm) | Weight (kg/m) |
|---|---|
| 20 x 3 | 0.47 |
| 20 x 5 | 0.79 |
| 20 x 6 | 0.94 |
| 20 x 10 | 1.57 |
How do you calculate the weight of a steel tube?
Steel Tube Formula: (OD-Wall thickness)×Wall thickness (mm)×0.02466×length (m) E.g: 114mm(OD)×4mm (Wall thickness) × 6m (length) Calculation: (114-4)×4×0.02466×6=65.102kg

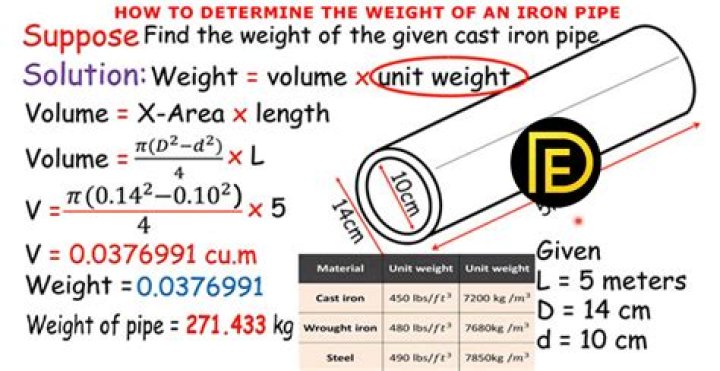

How do you find the volume of a circular ms pipe?
Hollow circular MS pipe. Let us consider the steel pipe of 1m. length with the inner diameter (I.D.) as 150mm and outer diameter (O.D.) as 168mm. Now, the volume of the hollow pipe is given by the formula, = π × (D×D- d×d)/4 ×L
How to calculate the metal weight formula?
However, sometimes you may want to learn the weight calculation formula and keep it in your mind, here is it: Weight (kg) = Sectional Area (mm 2) × Length (m) × Density (ρ, g/cm 3)× 1/1000. In order to help you quickly find the metal weight formula, I made infographic which is not only practical but also beautiful.
How do you calculate the weight of a 6m thick sheet metal?
• Formula: length (m)×width (m)×thickness (mm)×7.85 • E.g: 6m (length)×1.51m (width)×9.75mm (thickness) • Calculation: 6×1.51×9.75×7.85=693.43kg
