Any symbol that is used to show a joint or weld type feature on the other side of the arrow line is always placed on a dotted line. BS 499 and AWS require symbols to be placed above the reference line (which indicate the other side) or below the reference line (indicating the arrow side of the joint).
What does the welding symbol tell the welder?

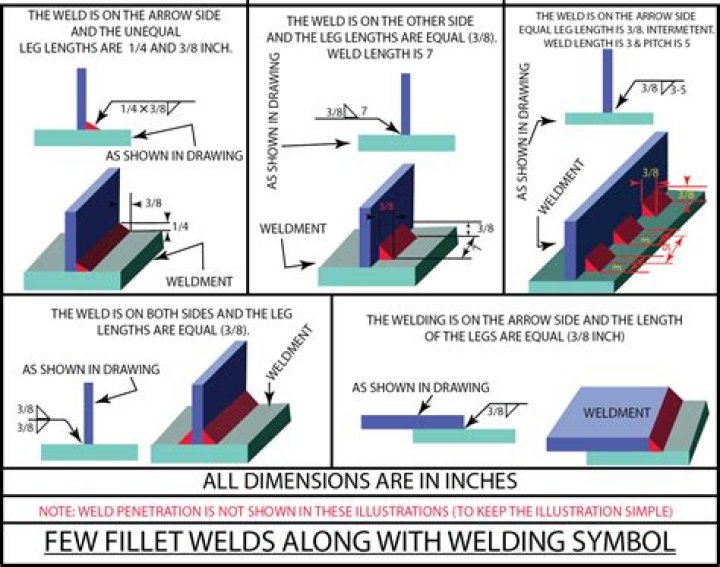

Welding symbols are used to communicate between the designer and the welder. The arrow and leader line point to the joint in question, while the weld symbol tells you what type of weld to do. If the weld symbol is below the reference line (such as in symbol 1), the weld should be made on the same side as the arrow.
What is melt through?
Melt-through is defined by the American Welding Society (AWS) as “visible root reinforcement produced in a joint welded from one side.”2 In other words, melt-through is the penetrated weld metal that extends beyond the base metal on the backside of a joint welded from the opposite side.
What causes melt through?
The test setup for the welding process. Burn-through is defined as an undesirable open hole when the base metal completely melts, which can be caused by excessive heat input, improper travel angle, travel speed, and insufficient electrical sickout.
What are the welding symbols?
The weld symbol distinguishes between the two sides of a joint by using the arrow and the spaces above and below the reference line. The side of the joint to which the arrow points is known (rather prosaically) as the arrow side, and its weld is made according to the instructions given below the reference line.
What are the four types of welding?
There are four main types of welding. MIG – Gas Metal Arc Welding (GMAW), TIG – Gas Tungsten Arc Welding (GTAW), Stick – Shielded Metal Arc Welding (SMAW) and Flux-cored – Flux-cored Arc Welding (FCAW). We dive deeper into each type of welding here.
What is welding drawing?
Each welding position has its own basic symbol, which is typically placed near the center of the reference line (and above or below it, depending on which side of the joint it’s on). The symbol is a small drawing that can usually be interpreted as a simplified cross-section of the weld.
What are weld maps?
A weld map is a version of the drawing used to number each of the welds or joints contained within it. The process of numbering or annotating each weld’s location is what turns the standard drawing into a map. The benefit of the weld map is that it creates the weld’s visual position on the map.
What is a weld map?
Weld Map: A document which includes but not limited to a Sketch of the equipment locating all the welds along with a table with all the details (Material, thickness, welding process, WPS, PQR etc…) required for getting customer/client/TPI approval.
What is shop weld plan?
Shop Weld Plan: A document prepared based on weld map & drawings approved by the customer which mentions specific seam no with WPS parameters, WPQ, etc., which is issued to shop for the fabrication activities.
What is a welding procedure?
The weld procedures provided to customer alongside vessel or equipment drawings and design calculation. The customer welding SME (subject matter expert) reviews the welding procedures and comment or approve them. A particular vessel or equipment might have several welding procedures for different locations.
What is the ASME code for welding?
ASME Boiler and Pressure Vessel Code, Section IX, and ASME B31.3 require that each qualified welder and welder operator be assigned an identification symbol. That symbol shall be marked at each pressure containing weld, or an adjacent area to the weld.
