Start by sketching a centre line (or regular line if you prefer). Then, select the line and run the Dynamic Mirror command. You’ll barely notice that it is running aside from a double-tickmark at either end of your selected line, and the fact that the Dynamic Mirror command appears to be a pressed button.
How do you mirror an object in Solidworks?
In a part, click Mirror (Features toolbar) or Insert > Pattern/Mirror > Mirror. See Mirroring Features. Create an opposite-hand version of a part. In a part, select a face or plane to mirror about, and then click Insert > Mirror Part.
What is mirror command in Solidworks?

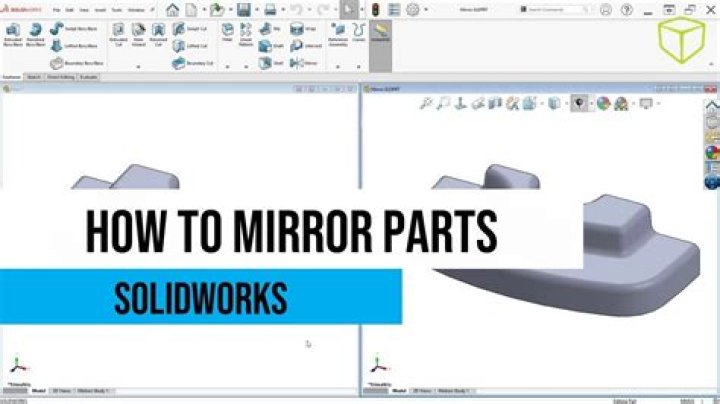

In this post, you will learn how to use the Mirror command in Solidworks. Mirroring is another way that SolidWorks can create a “copy” of an existing object. Additionally, you must choose a plane to mirror parts. In most cases, you will have to create your own plane to have the mirror done the way you need.
How do you copy text in Solidworks?
Two methods of copying SOLIDWORKS features:
- The first is to hold down the CTRL key, then drag & drop the feature to where you want to copy it to.
- The second method is to use CTRL+C, then pick where you want it to paste to and use CTRL+V.
How do you mirror flip in Solidworks?
How do I add a dynamic mirror in Solidworks?
To mirror sketch entities as you sketch them:
- Select a line or a model edge in an open sketch.
- Click Dynamic Mirror Entities. (Sketch toolbar) or Tools > Sketch Tools > Dynamic Mirror .
- Create the sketch entities that you want to mirror.
- To turn mirroring off, click Dynamic Mirror Entities.
Can you mirror a whole part in Solidworks?
You can use Mirror Part to create a part that is an opposite-hand version of an existing part. Because the mirrored version is derived from the original version, the two parts always match. In an open part document, click a model face or plane about which to mirror the part. Click Insert > Mirror Part.
How do you mirror sheet metal in Solidworks?
on the Features toolbar, or click Insert > Pattern/Mirror > Mirror….You can also:
- Mirror selected sheet metal features in the part.
- Create a second, mirrored sheet metal body in the part.
- Use the Insert > Mirror Part command to create a part that is an opposite-hand version of the original part.
Can you copy and paste features in SolidWorks?
You can also copy features from model to model. To copy a feature: Click Instant3D on the Features toolbar. To copy features from one part to another part, tile the windows, then drag the features from one window to another, or use Copy and Paste (Standard toolbar).
What is the quickest way to start the SolidWorks program?
What is the quickest way to start the SolidWorks program? Open the program via a desktop shortcut. How do you copy a part within the SolidWorks program? Select Save As and save the part under a new title.
How do you flip a part in Solidworks?
Creating Opposite-Hand Versions of Parts
- In an open part document, click a model face or plane about which to mirror the part.
- Click Insert > Mirror Part.
- Under Transfer, select any combination of items from the source part to be included in the opposite-hand version.
How do you Mirror an object in SolidWorks?
Mirroring is another way that SolidWorks can create a “copy” of an existing object. Additionally, you must choose a plane to mirror parts. In most cases, you will have to create your own plane to have the mirror done the way you need.
How do you use mirror in AutoCAD?
You can use Mirror to create a copy of one or more features, mirrored about a face or a plane. In parts, you can mirror faces, features, and bodies. In assemblies, you can mirror assembly features. If you modify the original feature (seed feature), the mirrored copy is updated to reflect the changes.
How can I mirror assembly features?
In assemblies, you can mirror assembly features. Use the Mirror Feature PropertyManager to mirror features. In parts, you can mirror faces, features, and bodies. In assemblies, you can mirror assembly features.
How do I Mirror a body in a drawing?
You can mirror a body in a single body part or multibody part. In multibody parts, you can mirror features from one body onto one or more other bodies by selecting Geometry Pattern and using Feature Scope to choose which bodies should include the feature.
