If you want to plot something in semi-log graph, first of all, you need to convert the decimal numbers into log scale. Suppose you are plotting frequency from 100 Hz to 10,000 Hz. Now you need to convert these frequency into log scale like this. Now instead of plotting 100 Hz to 10,000 Hz, plot simply log scale.
How do you plot a frequency response?
These response measurements can be plotted in three ways: by plotting the magnitude and phase measurements on two rectangular plots as functions of frequency to obtain a Bode plot; by plotting the magnitude and phase angle on a single polar plot with frequency as a parameter to obtain a Nyquist plot; or by plotting …
How do you read a semi-log graph?
Use a ruler to determine where a point stands on the y-axis. Each cycle of 10, on semi-log graph paper, is divided into 10 increments. For instance, between 0.1 and 1, there are increments denoting 0.2, 0.3, 0.4, 0.5, 0.6, 0.7, 0.8, and 0.9. Between 1 and 10, there are increments of 2, 3, 4, 5, 6, 7, 8, and 9.
Why do we use semi-log graph paper?
It lets you show that relation on a graph. It lets you see that relation from a graph. Semi-log graph paper let’s you conveniently grsph a logarithmic or exponential function. It lets you show that relation on a graph.
How do you measure frequency response?
Ideally, frequency response should be measured in an anechoic chamber with the loudspeaker under test driven with a sine wave signal slowly swept through the audible frequency range of 20Hz to 20kHz. A microphone placed on a preferred axis in the far-field of the loudspeaker will then record and plot the output.
Which plot is used in frequency response?
Bode plot
In electrical engineering and control theory, a Bode plot /ˈboʊdi/ is a graph of the frequency response of a system. It is usually a combination of a Bode magnitude plot, expressing the magnitude (usually in decibels) of the frequency response, and a Bode phase plot, expressing the phase shift.
Why is a semi-log graph used to plot microbial growth?
Why? Plotting the log of the number of cells versus time buys you the following: During exponential growth, you will get a straight line whose slope is the growth rate constant. You can directly compare the exponential growth rate of different cultures.

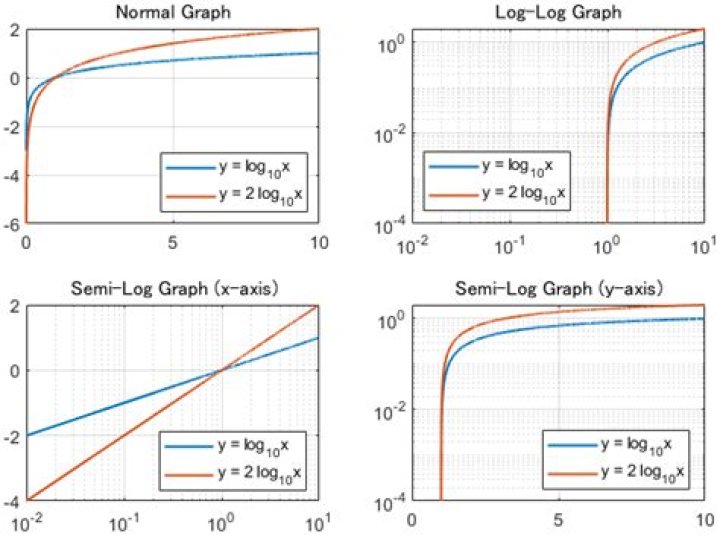

What is the difference between a log log and a semi-log graph?
In a semilogarithmic graph, one axis has a logarithmic scale and the other axis has a linear scale. In log-log graphs, both axes have a logarithmic scale.
What is a semi-log graph used for?
In a semi-log graph the y-axis is logarithmic, which means the seperation between the ticks on the graph is proportional to the logarithm of numbers. The x-axis has a linear scale, which means the ticks are evenly spaced. A semi-log graph is useful when graphing exponential functions.
What is the steady state sinusoidal frequency response?
The steady-state sinusoidal frequency-response of a circuit is described by the phasor transfer function ( )Hj. A Bode plot is a graph of the magnitude (in dB) or phase of the transfer function versus frequency.
Which lines does the curve pass through on the log-log axis?
We can see that the curve still passes through ` (1, 1)`, ` (4, 2)` and ` (9, 3)`. Points along the curve `y=sqrt (x)` using lin-log axes. Points along the curve `y=sqrt (x)` on log-log axes. We observe that the graph of y = x 1/2 is a straight line when graphed on log-log axes.
