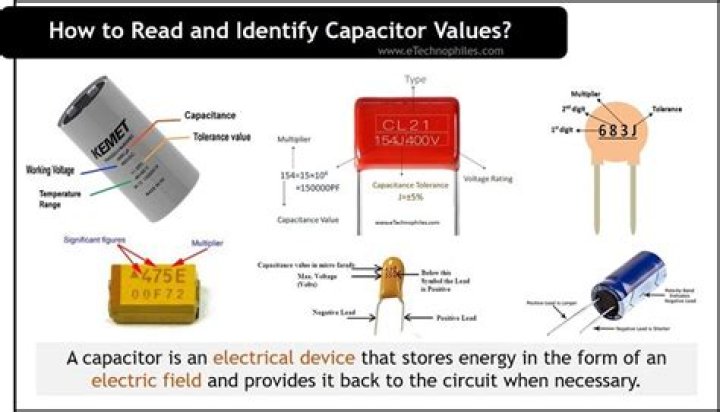

The markings on SMD tantalum capacitors normally consist of three numbers. The first two form the significant figures, and the third is the multiplier. Values are in picofarads. Therefore the SMD tantalum capacitor shown below has a value of 47 x 105pF, which works out to be 4.7µF.
Which side is positive on a tantalum capacitor?
A positive (+) sign is noticed below the long band. The combination of a long band and a “+” sign indicates that this side has a positive lead/anode, while the other side indicates a negative lead/ cathode. The reverse voltage or wrong connection could damage the capacitor.
What is the symbol of tantalum?
Ta
Tantalum/Symbol
Tantalum is a chemical element with the symbol Ta and atomic number 73. Previously known as tantalium, it is named after Tantalus, a villain from Greek mythology. Tantalum is a rare, hard, blue-gray, lustrous transition metal that is highly corrosion-resistant.
How do you read a capacitor color coded?
Fig. 3 – An Example to Understand How to Read Capacitor Color Markings
- The first colour band is Brown. That means the first digit is 1.
- The second colour band is Red. That means the second digit is 2.
- The third colour band is Green.
- The fourth colour band is white.
- The last colour band is Yellow.
How do you identify SMD tantalum capacitors?
SMD tantalum capacitor markings In some cases the only marking shown on the capacitor may be a bar across one end indicating the polarity. This is particularly important because it is necessary to be able to check the polarity and to have a marking to identify the polarity of the capacitor.
What is the tolerance capacitor marking code for an EIA capacitor?
EIA Tolerance Capacitor Marking Code Letter code Tolerance Z +80%, -20% – this is used with electroly M ±20% K ±10%
Is dielectric absorption a problem in tantalum capacitors?
Dielectric absorption can cause a problem in circuits where very small currents are used, such as long-time-constant integrators or sample-and-hold circuits. However, in most applications where tantalum electrolytic capacitors are supporting power supply lines, dielectric absorption is not a problem.
What are the characteristics of the different oxide layers in tantalum/niobium capacitors?
Characteristics of the different oxide layers in tantalum and niobium electrolytic capacitors Anode- material Dielectric Relative permittivity Oxide structure Breakdown voltage (V/μm) Tantalum Tantalum pentoxide, Ta 2 O 5 27 Amorphous 625 Niobium or Niobium oxide Niobium pentoxide, Nb 2 O 5 41 Amorphous 400
