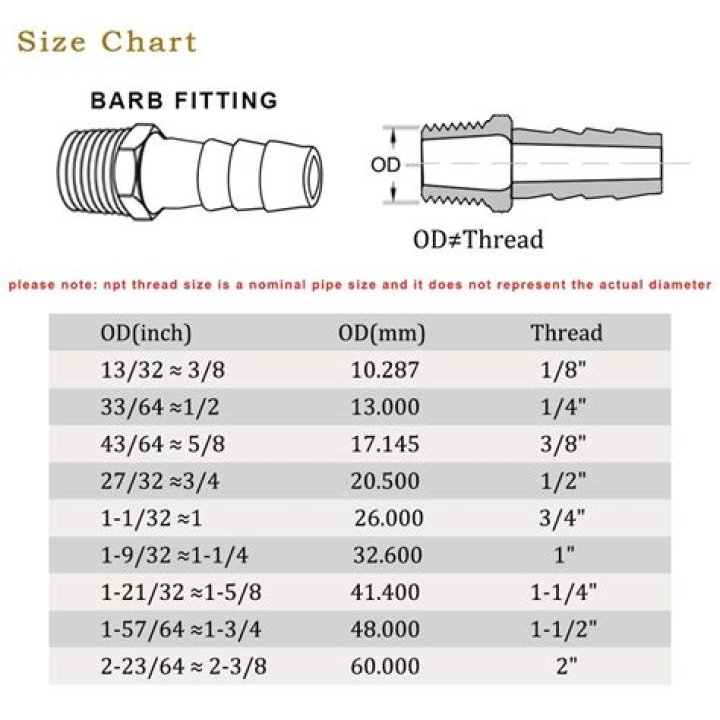

How do you size a hose barb fitting? Hose barbs are sized by the tubing ID (inner diameter). So, the hose barb itself is going to be larger in diameter than the inner diameter of the hose. And that’s what we’re sizing for– the inner diameter, the hose.
What is a barb fitting?
A hose barb is defined as one or more continuous ridges or bumps on a fitting that are used to grip the inside diameter of a tube and seal the connection. While compression and screw-on fittings have their place, the barbed fitting remains the dominant system for connecting flexible tubing.
What size Barb fits for 3/8 hose?
Compression fittings need to be matched exactly. With standard barbs, I use 1/2″ barbs for everything 7/16″ ID tubing even 3/8″ ID tubing… I put them all on 1/2″ barbs for an extra snug tight fit. You can also easily rung 3/8″ID tubing on 1/2″ barbs without using clamps for a nice super tight fit.
Do barb fittings reduce flow?
Yes it reduces flow but for your drain, not a concern.
What are barb fittings used for?
Barbed fittings are widely used in low pressure (about 200psi or lower) fluid, gas and air flow control applications. The barb serration or ridge grips the interior wall of the tubing and provides a sealing surface without damaging the tubing wall.
How much pressure will a barbed fitting hold?
Barbed style fittings are limited to relatively low pressures (usually below 150 or 125 psi) due to the limitations of the soft and flexible tubing. Barb style fittings also have smaller waterways than push-to-connects or compression fittings.
What are the dimensions of pipe fittings?
Pipe Fitting Dimensions – Metric and English Sizes. From 100mm it goes to 200mm and then from 200mm-500mm, 500mm-1000mm. The Standard English use inches when measuring. The 2mm is equal to 1/16 inches (cap/plug). A 3 mm is equivalent to 1/8” (coupling). A 4 mm is equal to 3/16” cross/4 way and the 5 mm to ¼” elbow – 45.
What is the size of a fitting?
The definition of fitting is something appropriate or expected. An example of fitting is a man with a 34″ waist wearing 34″ waist jeans; a fitting size. Fitting is defined as the activity when someone tries on clothes to make sure they are the right size, or a small part that joins together other parts.
What size are the brake line fittings?
Brake Line Fittings are sometimes called Tube Nuts and are used with flares to connect hard lines together. The most common threads are 3/8-24UNF and M10 x 1.0 metric for 3/16 brake line tube. These fittings are plated for long life and corrosion resistance and available in a variety of threads and tube sizes.
What is a hose barb?
Hose barbs are cylindrical pieces or parts for attaching and securing of hoses (tubing). The barb-like rings on the cylindrical piece allow for an easy push-connection of flexible-plastic or rubber tubing that is not so easily disconnected. Hose barbs are used in machine perfusion and chemistry laboratory equipment.
