UTM coordinate of a point is stated by writing the zone, easting and then northing values. When finding a position on a map, it is helpful to “read right up”, that is to read west to east to find the easting and then south to north to find the northing of the location.
Where are UTM coordinates used?
UTM is currently used by the United States and NATO armed forces. With the advent of inexpensive GPS receivers, many other map users are adopting the UTM grid system for coordinates that are simpler to use than latitude and longitude. The UTM system divides the earth into 60 zones each 6 degrees of longitude wide.
How do you use UTM coordinates on a topographic map?
If UTM ticks are shown on a USGS topographic map, the zone is indicated in the credit legend in the lower left corner of the map collar. Within each zone, coordinates are measured as northings and eastings in meters. The northing values are measured from zero at the equator in a northerly direction.
How do I use UTM coordinates in Google Maps?
How to enter coordinates in Google Maps on a computer
- Go to maps.google.com.
- Type out the coordinates into the search bar — using either the degrees, minutes, and seconds (DMS) format, the degrees and decimal minutes (DMM) format, or decimal degrees (DD) format — then hit enter or click on the search icon.
How do you use easting and northing coordinates?
Eastings are written before Northings. Thus in a 6 digit grid reference 123456, the Easting component is 123 and the Northing component is 456, i.e. if the smallest unit is 100 metres, it refers to a point 12.3 km east and 45.6 km north from the origin.
How do I show UTM coordinates in Google Earth?
- Open Google Earth.
- At the top, click Google Earth. Preferences.
- Click 3D View. Then, under “Show Lat/Long,” choose a display format.
- Click OK. Coordinates will be displayed in the lower right corner.
How to convert UTM coordinates to latitude and longitude?
Open the application and Select UTM Tab
What is the maximum value of Easting in UTM coordinates?
Therefore the maximum width of a UTM zone occurs on the equator. Depending on the datum and the chosen ellipsoid, an approximate range for the easting values can be calculated. In general the easting values can not be larger than 834000m and smaller than 166000m . As a result, an easting coordinate is always a six digit number.
What does the term UTM mean?
The Universal Transverse Mercator (UTM) is a system for assigning coordinates to locations on the surface of the Earth. Like the traditional method of latitude and longitude, it is a horizontal position representation, which means it ignores altitude and treats the earth as a perfect ellipsoid.

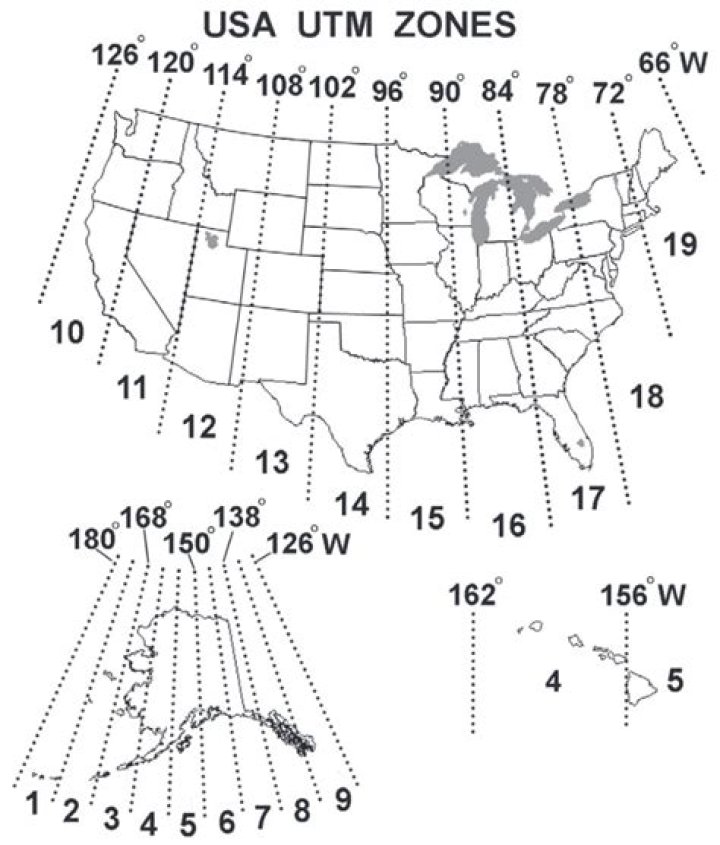

How many UTM zones are there?
The UTM system divides the Earth into 60 zones, each 6° of longitude in width. Zone 1 covers longitude 180° to 174° W; zone numbering increases eastward to zone 60, which covers longitude 174°E to 180°. The polar regions south of 80°S and north of 84°N are excluded.
