In suspension bridges, the cables ride freely across the towers, transmitting the load to the anchorages at either end. In cable-stayed bridges, the cables are attached to the towers, which alone bear the load. The cables can be attached to the roadway in a variety of ways.
Who invented cable suspension bridges?
NIHF Inductee John Roebling Invented the Suspension Bridge.
What is a cable style bridge?
cable-stayed bridge, bridge form in which the weight of the deck is supported by a number of nearly straight diagonal cables in tension running directly to one or more vertical towers. The towers transfer the cable forces to the foundations through vertical compression.
How is a cable for a suspension bridge produced?
Cables for some of the first suspension bridges were made of linked wrought-iron eyebars; now, however, cables are generally made of thousands of steel wires spun together at the construction site. Spinning is done by rope pulleys that carry each wire across the top of the towers to the opposite anchorage and back.
What is the purpose of cable bridge?
The tower of a cable-stayed bridge is responsible for absorbing and dealing with compressional forces. The cables attach to the roadway in various ways. For example, in a radial pattern, cables extend from several points on the road to a single point at the tower, like numerous fishing lines attached to a single pole.
What is the difference between a suspension bridge and a cable bridge?
In suspension bridges, the cable ride freely across the towers, transmitting the load to the anchorages at either end. In cable stayed bridges, the cables are attached to the towers, which alone bear the load.
Which was the first suspension bridge?
Bottom line: On January 30, 1826, workers completed the Menai Bridge between Wales and Anglesey, the first modern suspension bridge in the world.
Why it is called Cable Bridge?
A cable-stayed bridge has one or more towers (or pylons), from which cables support the bridge deck. Cable-stayed bridges were being designed and constructed by the late 16th century, and the form found wide use in the late 19th century.
Where are suspension bridges used?
Today, you can still find suspension bridges deep in the remote jungle as well as in most major cities. In the U.S. the two most famous suspension spans are probably San Francisco’s Golden Gate and New York City’s Brooklyn bridges. The main parts of a suspension bridge are its towers, cables, decking and anchorages.
What are the main parts of a suspension bridge?

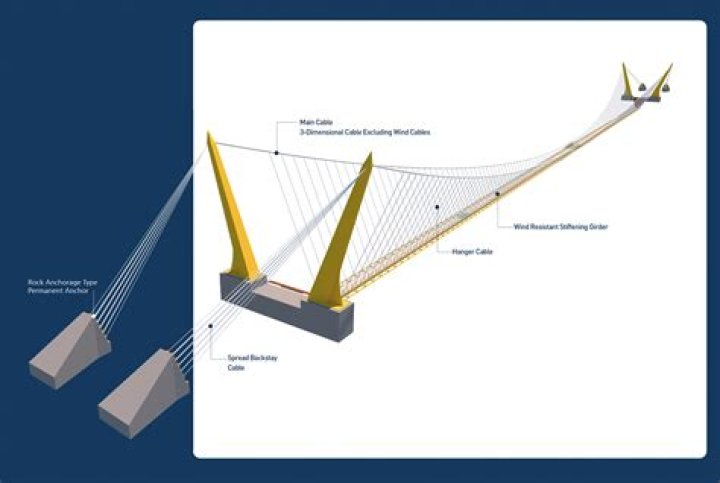

A suspension bridge is a type of bridge in which the deck is hung below suspension cables on vertical suspenders. The basic structural components of a suspension bridge system include stiffening girders/trusses, the main suspension cables, main towers, and the anchorages for the cables at each end of the bridge.
Why does the suspension bridge have cables?
These towers support the majority of the weight as compression pushes down on the suspension bridge’s deck and then travels up the cables, ropes or chains to transfer compression to the towers. The towers then dissipate the compression directly into the earth. The supporting cables, on the other hand, receive the bridge’s tension forces .
How do cables help to support a suspension bridge?
Most of the bridge’s weight (and any vehicles on the bridge) is suspended from the cables . The cables are held up only by the towers, which means that the towers support a tremendous weight (load). The steel cables are both strong and flexible. This makes long span suspension bridges susceptible to wind forces.
How do you build a suspension bridge?
Here are the basics for building a suspension bridge. Set the anchors for the cables. The cables, which bear most of the weight of the decking, must be anchored in solid bedrock or enormous concrete anchors on each side of the bridge.
What are facts about suspension bridges?
Suspension bridges get their name from the fact that the roadway is suspended by cables from two tall towers. Engineers design the cable support systems in such a way that most of the weight of the bridge is supported by the two towers, which in turn dissipate the compression forces from the cables directly into the ground.
