A voltage-controlled oscillator is an oscillator with an output signal whose output can be varied over a range, which is controlled by the input DC voltage. By varying the input DC voltage, the output frequency of the signal produced is adjusted.
How is a VCO circuit created?
There are many types of VCO circuits; a very basic one can be built by just utilising a capacitor, inductor and resistor to make a tank circuit. Also Op-Amps, Multivibrator, transistors, 555 timers can also be utilised to build oscillating circuits.
What is a VCO circuit?
A voltage-controlled oscillator (VCO) is an oscillator circuit whose frequency can be controlled or varied by a DC input voltage. This type of circuit is also called a voltage-to-frequency converter (VFC). The output waveform from the VCO may be sine, square, or other waveshape depending on the circuit design.
What is VCO in IC?
VCO (Voltage controlled oscillator) Voltage controlled oscillator is a type of oscillator where the frequency of the output oscillations can be varied by varying the amplitude of an input voltage signal.
How does a relaxation oscillator work?
A relaxation oscillator is a repeating circuit (like the flasher circuit illustrated above) which achieves its repetitive behavior from the charging of a capacitor to some event threshold. The event discharges the capacitor, and its recharge time determines the repetition time of the events.
In what way VCO is different from other oscillator?
A VCO is a Voltage Controlled Oscillators i.e. it is an electronic oscillator whose oscillating/output frequency can be controlled by a DC voltage….Editorial Team – everything RF.
| VCO | VCXO |
|---|---|
| Oscillation Frequency Generated by an Electronic Circuit | Oscillation Frequency Generated based on Crystal Properties |
What is IC 566?

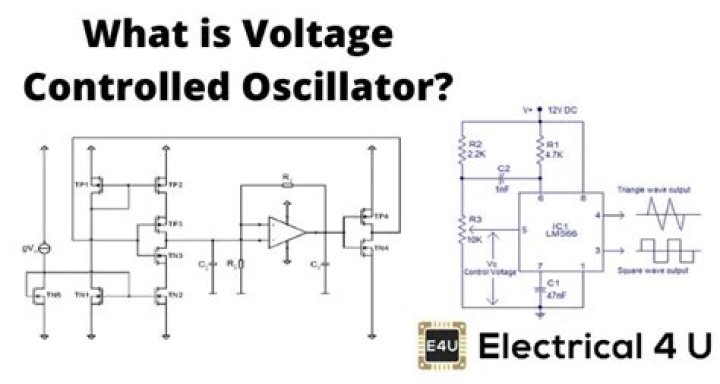

Voltage controlled oscillator using LM566 IC LM566 is a monolithic voltage controlled oscillator from National Semiconductors. It can be used to generates square and triangle waveforms simultaneously. The frequency of the output waveform can be adjusted using an external control voltage.
What is a voltage controlled oscillator?
A Voltage Controlled Oscillator is an oscillator which produces oscillating signals (waveforms) with variable frequency. The frequency of this waveform is varied by varying the magnitude of the Input voltage.
What are the different types of oscillator circuits?
This waveform can either be of Sine, triangle or even a saw tooth type. Some of the most common oscillator circuits are LC circuit, Tank circuit etc. A Voltage Controlled Oscillator is an oscillator which produces oscillating signals (waveforms) with variable frequency.
How does the frequency of an oscillator depend on capacitor?
In a RC oscillator the frequency of the output wave depends on the value of the capacitor used in the circuit, since the frequency is given by the formulae Hence in this case the frequency of oscillation is inversely proportional to the value of capacitance used in the circuit.
What does a voltage controlled oscillator do inside a phase locked loop?
The voltage controlled oscillator is the main function block in a Phase Locked Loop system. So let us also understand about the Phase locked Loop, why it is important and what a VCO does inside a Phase Locked Loop. What is a Phase Locked Loop (PLL)?
