Variable wavelength detector (VWD) or UV-visible (UV-vis) absorbance detector: This device uses a deuterium source and a monochromator to allow the selection of a particular wavelength in the UV-vis region for selective detection.

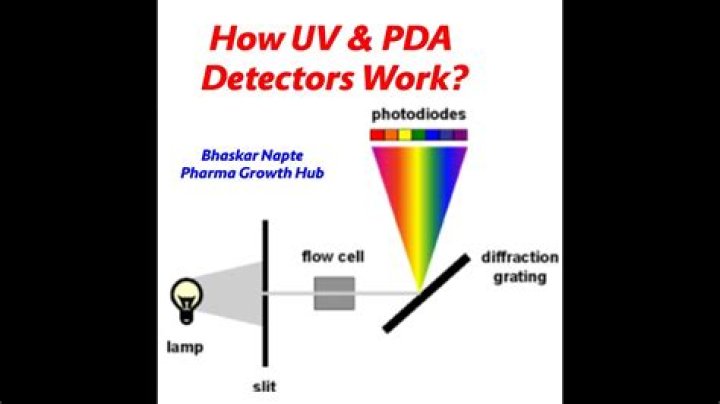

How does a dad detector work?
A DAD detects the absorption in UV to VIS region. While a UV-VIS detector has only one sample-side light-receiving section, a DAD has multiple (1024 for L-2455/2455U) photodiode arrays to obtain information over a wide range of wavelengths at one time, which is a merit of the DAD.
Why RI detector is used?
A differential refractometer (DRI), or refractive index detector (RI or RID) is a detector that measures the refractive index of an analyte relative to the solvent. They are often used as detectors for high-performance liquid chromatography and size exclusion chromatography.
What is fluorescence used for?
Fluorescence is often used to analyze molecules, and the addition of a fluorescing agent with emissions in the blue region of the spectrum to detergents causes fabrics to appear whiter in sunlight. X-ray fluorescence is used to analyze minerals.
What is the difference between Dad and VWD detector?
is the difference that on a DAD the signal from the lamp goes first thru a prisma and then thru the sample. On the VWD first passes the sample and then the prisma. I know the main benefit is on the DAD that you can record a full spectrum of a single peak.
What is the difference between UV and dad detector?
The UV/Vis detector can detect single wavelength at one time while the DAD can scan a wavelength range (i.e. 190-800nm). But DAD is better than UV/Vis because it can scan whole 190-800 nm region, on the other hand, UV/Vis can scan a single wavelength only.
What are the UV detectors used in liquid chromatography?
In liquid chromatography: UV detectors, fixed or variable wavelength, which includes diode array detector (DAD or PDA). The UV absorption of the effluent is continuously measured at single or multiple wavelengths. These are by far most popular detectors for LC.
What type of Schottky diode is used in RF power detection circuits?
Various Infineon low-barrier Schottky diodes are used, namely BAT15-02EL, BAT62-02V, BAT63-02V for single diode detector structure and BAT15-04W for double diode detector structure. Intended audience. This document is intended for engineers who need to design RF power detection circuits.
What is rid detector in chromatography?
Refractive index detector (RI or RID). Continuously measures the refractive index of the effluent. The lowest sensitivity of all detectors. Often used in size exclusion chromatography for polymer analysis. Radio flow detector. Measures radioactivity of the effluent.
What is uvuv detector?
UV detectors, fixed or variable wavelength, which includes diode array detector (DAD or PDA). The UV absorption of the effluent is continuously measured at single or multiple wavelengths. These are by far most popular detectors for LC.
