The communication basis for PROFIBUS lies in the cyclic data exchange between PLCs (masters) and devices (slaves). PROFIBUS components communicate using the PROFIBUS DP (Decentralized Periphery) communication protocol, which is the same for all applications and which allows cyclical and acyclical communication.
What is PROFIBUS communication?
PROFIBUS is a digital network responsible for providing the communication between the field sensors and the control system or the controllers. The first idea during its development was to have PROFIBUS solutions implemented in factory automation industries, then process industries, manufacturing, etc.
How does a PROFIBUS repeater work?
Repeaters Profibus network are active elements that interact directly on the circuits they are connected to, reconstructing the domain of time or signal amplitude of the degraded or distorted signals along the network segment by the cables of any element connected to it.
How do you test PROFIBUS communication?
Probably the best way to physically check a Profibus cable is to use the Siemens BT200 tester , which will test for Cable A/B breaks , cable A/B being swopped , cable shield breaks and incorrect terminations etc.
What is difference between Profibus and Modbus communication?
Modbus supports up to 249 slaves and 1 master. Profibus supports up to 124 nodes, which can be masters or slaves. The transmission medium further restricts this. Modbus can be used on RS232, RS422 and RS485.
What is Profibus and what are its applications?
PROFIBUS is applied to realize data transform and device control. The task of project is the control and monitoring of a coal transport system in a power factory. The control system is consist of a PLC S7-315, ET200M, OP7, industrial PC and ultrasonic material level transducer with PROFIBUS interface.
What is PROFIBUS and its types?
There are two variations of PROFIBUS in use today; the most commonly used PROFIBUS DP, and the lesser used, application specific, PROFIBUS PA: PROFIBUS DP (Decentralised Peripherals) is used to operate sensors and actuators via a centralised controller in production (factory) automation applications.
What is difference between PROFIBUS and Modbus communication?
Why PROFIBUS is used?
PROFIBUS PA (Process Automation) is used to monitor measuring equipment via a process control system in process automation applications. This variant is designed for use in explosion/hazardous areas (Ex-zone 0 and 1).
How PROFIBUS work?
How Profibus Work? Profibus is also a master-slave protocol to allow for multiple masters. all device perform startup sequence when they join a network. slave maintains failsafe timer.
When was the Profibus communication protocol developed?
In 1987, these collaborators developed and tested a new open fieldbus solution. They designed a bit-serial fieldbus to support field devices in their basic needs. Thus began the PROFIBUS communication protocol. In 1989, they completed the project and founded the PROFIBUS Nutzerorganization e.V. (PNO).
Is Profibus the Superman of protocols?
If Modbus is like “Batman” of protocols, then Profibus is the Superman – lean and fast. Profibus was developed in the 1990s to archive all industrial communication needs for both Industrial and process automation 5.Profinet. What is Profibus? How Profibus Work?
How do I connect a PROFIBUS PA string to PROFINET?

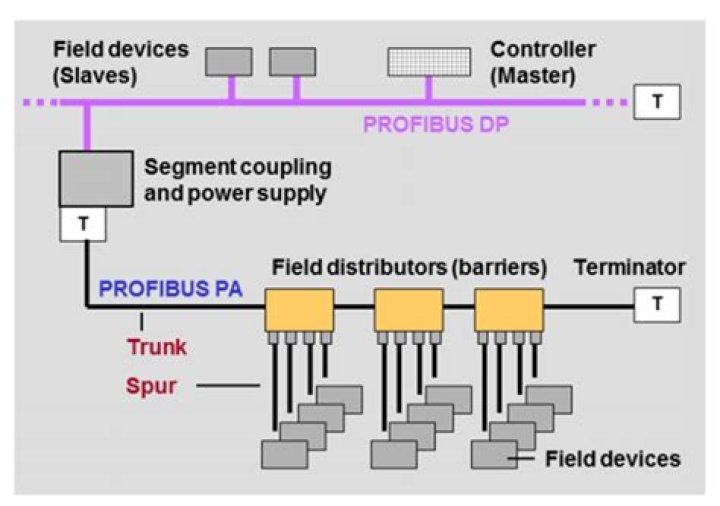

Downwards, a PROFIBUS PA string is connected through a coupler or linking device to enable typical process automation (PA) applications, e.g. in a hazardous enviroments. Upwards, the controller is connected to PROFINET as system bus and interface to MES and ERP levels. PA segments can also be connected directly to PROFINET using proxy technology.
