For 6-ohm speakers 16AWG wire is recommended for runs up to 36 feet and 10 or 12AWG wire for runs up to 150 feet. If you are using 8-ohm speakers, 16 AWG wire is recommended for runs up to 48 feet and 10 or 12AWG wire for runs up to 200 feet.
How long is too long for speaker wire?
Speaker wires can definitely be too long. Ideally, the maximum length a speaker wire should be run through is about 50 feet. Anything above 50 feet is considered too long. The length of the run of speaker wires from amplifiers to speakers affects the quality of the sound produced by a system.

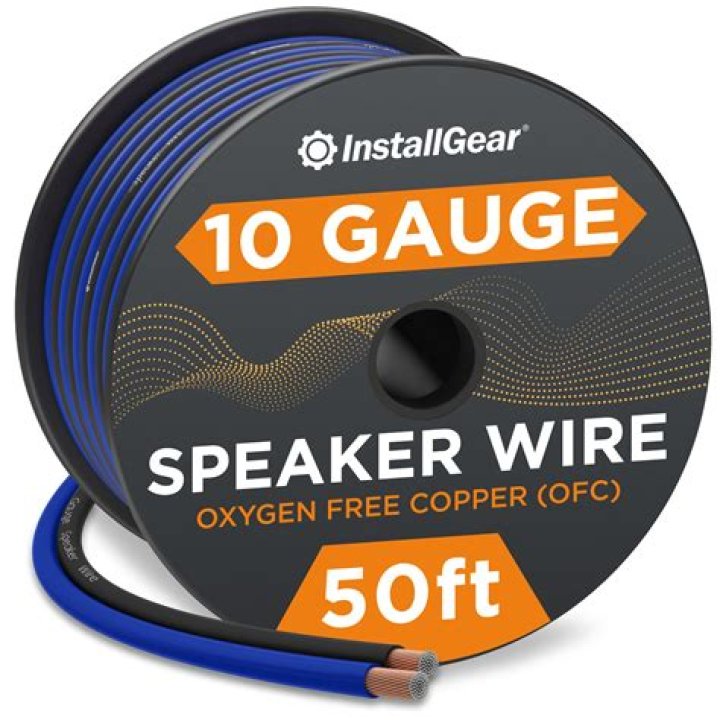

Is 10 gauge wire good for speakers?
The lower the gauge number, the thicker the wire. Thicker wire presents less resistance to current flow. Thick wire (12 or 14 gauge) is recommended for long wire runs, high power applications, and low-impedance speakers (4 or 6 ohms).
Is Thicker gauge speaker wire better?
A lower-gauge number indicates a thicker wire, while a higher-gauge number indicates a thinner wire. Speaker wires with lower-gauge numbers are better at carrying an amplified audio signal. However, for longer speaker wire runs (to another room, for example), it is better to use a thicker, lower-gauge wire.
Why is speaker wire so thin?
This section of cable is almost always quite short and is housed inside the speaker cabinet. Because the running length is quite less, a thin cable is more than enough to achieve the low resistance requirement, for efficient power/energy transfer.
How many feet of speaker wire do I need?
The rule is the total resistance of the wire should be less than 5 percent of the rated impedance of the speaker. Your Insignias are 8-ohm speakers, which means 16 gauge is good for up to a 48-foot run (per speaker). Speaker wire of 14 gauge is good for an 80-foot run, and 12 gauge is good for 120 feet.
Does length of speaker wire affect sound?
When speaker cables are different lengths, this causes the impedance values to be unequal. This explains why many people believe that it’s important to keep the wires consistent in lengths, but in reality, the difference in impedance values is so minimal that it has no impact on the overall sound quality.
Is 10 gauge speaker wire overkill?
Avoid the 10 AWG. 12 or 14 is fine for your needs.
Does wire thickness affect sound quality?
Having the wrong thickness will affect the sound quality of your speaker. Speaker wire thickness needs to be at most 5 percent of the speaker’s rated electrical resistance. Impedance, or electrical current resistance, increases with cord length, so more powerful speakers require a thicker cord.
What size wire do I need for a 500 watt amp?
Why Use Quality Audio Wire
| Amp Kit AWG (Wire Size) | Amplifier Wattage |
|---|---|
| 1/0 AWG | 1000 Watts RMS and up |
| 4 AWG | 500 – 1000 Watts RMS |
| 8 AWG | 250 – 500 Watts RMS |
| 10 AWG | Less Than 250 Watts RMS |
What is the best speaker wire?
While some speaker wire may sound slightly better with some audio systems, that’s a needle-in-a-haystack search that’s simply not worth it for most people. For most of us, the Monoprice 2747 12-gauge is a great deal on a sturdy and widely available cable.
What gauge of speaker wire should I get?
Thick wire (12 or 14 gauge) is recommended for long wire runs, high power applications, and low-impedance speakers (4 or 6 ohms). For relatively short runs (less than 50 feet) to 8 ohm speakers, 16 gauge wire will usually do just fine.
Which gauge wire should I be using?
The wire gauge depends on the current rating of the outlet and of the breaker, which, according to code, must be the same. The minimum wire size for a 30-amp, 240-volt circuit is 10-gauge, but to prevent poor performance because of voltage drop, you should consider upgrading to 8-gauge if the outlet is far from the panel.
What are the different types of speaker wire?
5-way binding posts. 5-way binding posts are a type of wire terminal found on speakers, receivers, and amplifiers. They accept bare speaker wire and four different types of connectors: pin connectors, spade connectors, banana plugs, and dual banana plugs.
