The SIGWX charts are valid for use within a period starting 3 hours before, until 3 hours after validity time. It is intended that for anything other than basic situational awareness (e.g. Wind and Temperature charts), the GRIB data should be interpolated between time steps.
What does a prognostic chart show?
A prognostic chart is a map displaying the likely weather forecast for a future time. Such charts generated by atmospheric models as output from numerical weather prediction and contain a variety of information such as temperature, wind, precipitation and weather fronts.
What is depicted in a significant weather prognostic SIGWX chart?
Significant Weather – or SIGWX – is a high-level chart indicating forecast position of jet streams, tropopause heights, thunderstorms/Cumulonimbus (CBS), turbulence, and fronts.
What do low-level SIGWX charts depict?
Low-Level Significant Weather (SIGWX) Charts depict weather flying categories, turbulence, and freezing levels (figure 8-11).
What is Sigwx chart?
SIGWX is a Significant Weather Chart defined by ICAO. Weather charts being issued by World Area Forecast Centres (from meteorological offices in London and Washington), presenting the most important meteorological phenomena relevant especially for air traffic transport.
What are the two types of prognostic chart?
They include fronts, isobars, cloud, and precipitation areas. There are two separate charts: one is a four-panel 12- and 24-hour, in which the upper two panels are devoted to low-level significant weather; the other, a two-panel 36- and 48-hour with discussion.
What is called as Aladdin’s cave of weather information?
The Internet. This is an Aladdin’s cave of weather information available over local networks or mobile services via WiFi, 3G, 4G and, ow 5G networks, satellite phone. The internet is now a valuable source of forecasts direct from weather prediction computers.
What information is contained in a convective Sigmet?
Any convective SIGMET implies severe or greater turbulence, severe icing, and low level wind shear. A convective SIGMET may be issued for any convective situation which the forecaster feels is hazardous to all categories of aircraft. Bulletins are issued hourly at Hour+55.
What three important weather phenomena are depicted on a low level Sigwx?
Each chart depicts a “snapshot” of weather expected at the specified valid time. Low-Level Significant Weather (SIGWX) Charts depict weather flying categories, turbulence, and freezing levels (figure 8-11).
What are convective SIGMETs issued for?
Convective SIGMETs are issued hourly for thunderstorm-related aviation hazards.

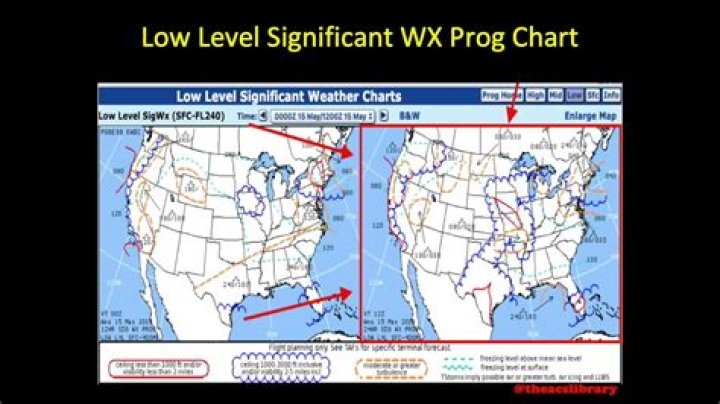

How often are low level significant prognostic charts?
Low altitude Significant Weather charts are issued four times daily and are valid at fixed times: 0000, 0600, 1200, and 1800 UTC. Each chart is divided on the left and right into 12 and 24 hour forecast intervals (based on the current NAM model available).
