E6011 is a multi-purpose electrode for stick welding that can be welded with DCEP, DCEN, and even AC. It is not common to stick weld in DCEN, but it can be done with the aggressive E6011 to prevent over penetration in the base metals.
Is 6011 welding rod AC or DC?
The 6011 rods are the AC version of the popular 6010 welding rods for DC. The 6010 have a high cellulose sodium-type coating, can penetrate deeply and are used for many applications in the field.
What is the polarity of 6013?
6013 electrodes may be used in any position with AC or DC (straight or reverse polarity).
Which is better DCEP or DCEN?

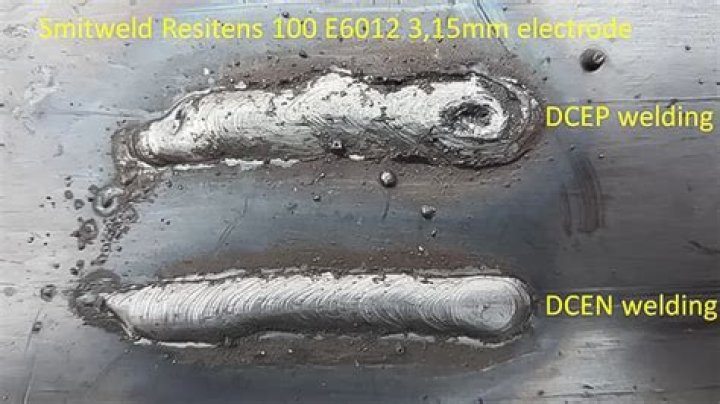

DCEP, or Reverse Polarity is the standard polarity for MIG and for Stick welding. DCEP provides a more stable arc in general in stick welding, but for welds requiring light penetration, use DCEN if the electrode is designated to run either polarity.
Why is DCEP called reverse polarity?
DCEP stands for Direct Current Electrode Positive or Direct Current Reverse Polarity. The electrons are freed from the base metal and flow to the electrode tip, as current always travels from positive to negative.
Can you use 6011 on DC?
While the 6011 was specifically designed for AC machines, it can also run on DC giving it an advantage over the 6010 electrodes (which can only do Direct Current Electrode Positive). A common mistake for Stick welders is to treat their 6013 electrodes like 6011 or 6010 rods.
What is the recommended polarity for E 6011?
In perhaps over simplified terms, an E6011 electrode is like an E6010 electrode designed to operate on AC polarity. Your question leads to a more general discussion of DC vs. AC welding output. In most cases, DC is the preferred welding polarity.
Can you weld 6011 on DC?
While the 6011 was specifically designed for AC machines, it can also run on DC giving it an advantage over the 6010 electrodes (which can only do Direct Current Electrode Positive).
Can you use 6011 on AC?
The 6011 is compatible with AC as well as DC currents when compared to the 6010 that is just DC compatible. The quality of the weld is more or less the same in both of the rods.
How strong is 6011 Rod?
The Hobart 770460 6011 Stick is an all-purpose stick electrode that can be used in all positions on carbon and galvanized steel. The 60,000 PSI tensile strength allows deep penetrating, making it ideal for welding through light to medium amounts of dirty, rusty or painted materials and various metals.
Is stick a DCEP?
What polarity do 6011 welding rods work with?
The 6011 rods, nevertheless, work well with any type of polarity. Moreover, the 6011 rods will work well with cracker boxes, DC-, or DC+. All you must do is adjust the settings of the welding machine to whatever setup you want to use the 6011 rods. Thus, you don’t need to worry about polarities when using 6011 rods.
What is the difference between 6011 and 6010 electrodes?
6010 electrodes’ polarity is DCEP. On the other hand, 6011’s polarity is variable since it can run on both DCEP and AC sources. This makes 6011 a great farm rod to be used in AC-only machines. So, due to the flexibility of 6011, you can adjust and choose between polarities.
What do the numbers on the 6011 rods mean?
The last two numbers not only determine the flux coating on the electrode but also the type of current which can be used. The 6011 rods work with any polarity. You don’t have to stress about whether you have a cracker box, DC- or a fancier machine that can handle different polarities and AC frequencies, the 6011 will perform with all of these.
What is the tensile strength of a 6011 rod?
6011 WELDING ROD AMPERAGE & CHARACTERISTICS 6011 Tensile Strength 60000 PSI Position All Positions Polarity DCEP,DCEN, AC Arc Characteristics Violent
