Extrusion is a process where a material undergoes plastic deformation by the application of a force causing that material to flow through an orifice or die. The material adopts the cross-sectional profile of the die and if the material has suitable properties, that shape is retained in the final extrudate.
What die shape is needed to extrude a hollow tube?
porthole die
#2 – Hollow Dies To extrude hollow shapes, a porthole die is generally used. It is made up of two interlocking pieces — the mandrel and the cap. The mandrel forms the internal features of the profile and has multiple portholes separated by webs or legs for support.
Which cross-sectional shapes are produced by extrusion process?
If extrusion is in only one direction (direct extrusion or indirect extrusion as shown below) the material has a uniform cross-sectional shape along its length. The forward and backward extrusion processes also shown can produce small parts with a three-dimensional profile.
What are the 4 steps required to extrude?
Plastification Extruding The processes include material preparation, preprocessing, extruding, cutting, and reforming. The porous products can be obtained after drying, pre-sintering, and sintering of the extruded green body. It is an effective way to produce a long porous tube with a small diameter.
What is extrusion processes?
Extrusion is a process used to create objects of a fixed cross-sectional profile by pushing material through a die of the desired cross-section. It can be done with hot or cold material. Commonly extruded materials include metals, polymers, ceramics, concrete, modelling clay, and foodstuffs.
What is extrusion processing?
Summary. Extrusion processing is a commonly used processing technology in the food industry with a wide number of applications. It is a processing system that utilizes a single screw or a set of screws to force food materials through a small opening.
What types of shapes are extruded?
Metals and alloys can be extruded into round or oval tube shapes, hollow square tube shapes, channel shapes, Zee or Z shapes, Tee or T shapes, H or I beam shapes, L shapes, and other structural shapes.
How are hollow shapes manufactured using extrusion?
Aluminum extrusion is the process of creating unique aluminum shapes through the use of machining and metal dies. Most manufacturers choose the extrusion process over other metal forming processes because it is easier to make complex or unique shapes through the use of aluminum extrusion.
Which of the following is a type of extrusion process?
Extrusion is classified in general into four types. They are Direct extrusion, indirect extrusion, impact extrusion and hydrostatic extrusion. Direct extrusion, also called forward extrusion, is a process in which is the billet moves along the same direction as the ram and punch do.
How does extrusion work step by step?

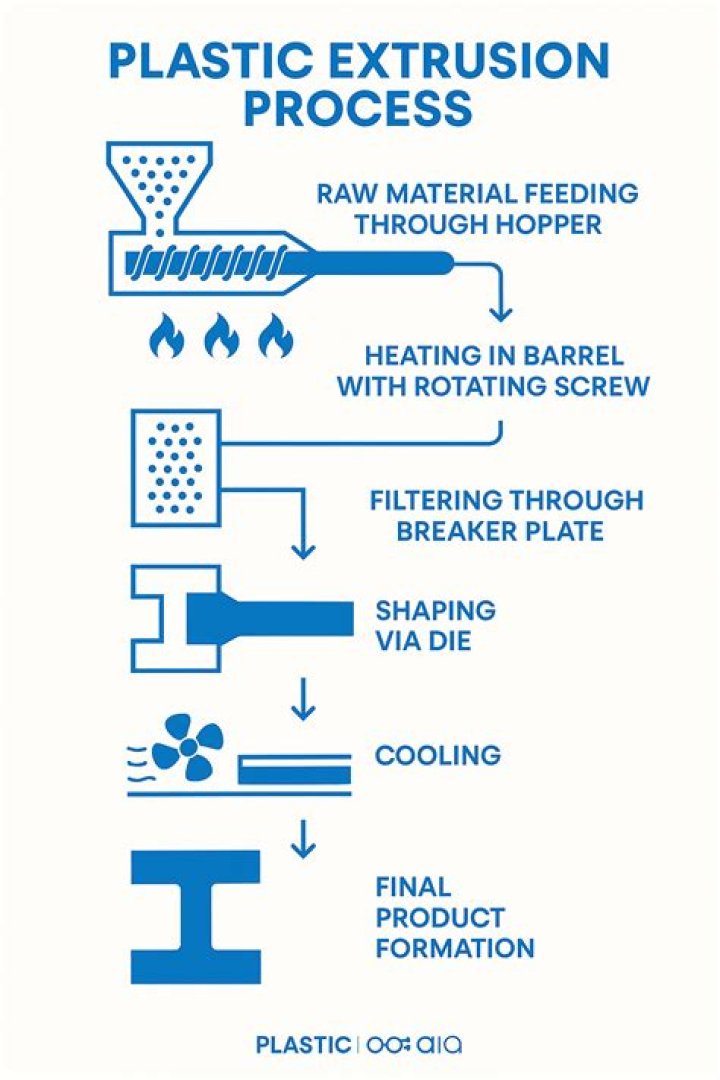

Plastic products take many different forms – known as plastic profiles to us – but they all start as raw material called resin. In plastic extrusion, resin beads are melted down, filtered for uniform consistency, pushed through a die cut for the final product shape, and then cooled.
What are the types of extrusion processes?
Types of Extrusion Process
- Direct Extrusion.
- Indirect Extrusion.
- Hydrostatic Extrusion.
- Lateral or Vertical Extrusion.
- Hot extrusion.
- Cold Extrusion.
- Impact Extrusion.
What can be made using plastic extrusion?
Extrusion moulding of plastics is used to make any long shape that has a constant cross section. Pipes, gutters, window sections and decorative trims can all be made using the process.
Which type of plastic materials can you extrude?
Typical plastic materials that are used in extrusion include but are not limited to: polyethylene(PE), polypropylene, acetal, acrylic, nylon(polyamides), polystyrene, polyvinyl chloride(PVC), acrylonitrile butadiene styrene(ABS) and polycarbonate.
What can plastic extrusion manufacturers do for You?
Versatility – Along with standard extrusions,a manufacturing company with years of industry experience can create a unique part or component.
How do plastic extrusion machines work?
Plastic extrusion works by melting, processing and re-melting a type of plastic referred to as thermoplastic resins. The resins generally come in a bead or pellet form which allows them to be used in the extrusion machinery. The beads come in a variety of grades and this allows them to be purchased in the grade required for a specific use.
