Neutrals. When wiring lighting circuits supplied by a grounded general-purpose branch circuit, the 2011 NEC now requires you to provide a neutral conductor at nearly every switch point [404.2(C)]. The purpose for this is to complete a circuit path for electronic lighting control devices, such as occupancy sensors.
Does every light switch have a neutral wire?

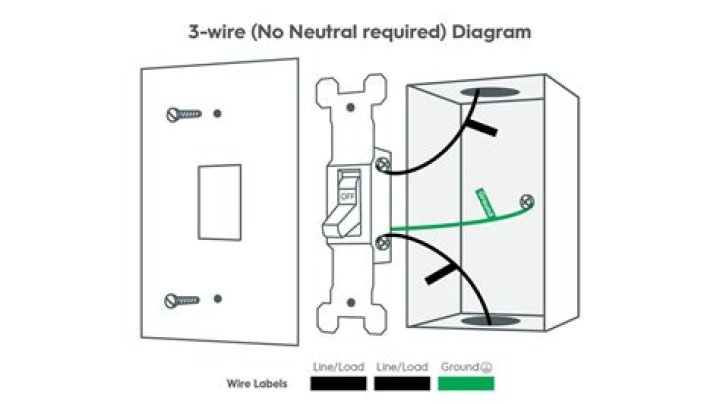

Standard rocker and toggle switches will not have a neutral wire connected. If you do find a white wire connected to a rocker or toggle switch, it is likely not a neutral wire. You can check out our support article on common switches to help identify which wire this will be.
Can you take a neutral to a switch?
Bringing both phase and neutral to the switch is an accepted method of installation, it became popular with wall light installations as their would be no mess of wires behind the lights, only a phase, neutral and CPC.
Do you have to have a neutral for a 3 way switch?
Well you’re in the right place for a 3-way. The most common wiring requirements of any hardwired automated 3-way light switch is a neutral wire and a traveler. Yes, there are a few… (read very, very, very few) switches that don’t require a neutral, but those will limit you to incandescent only.
Why do I need a neutral wire?
More specifically, neutral wire brings the circuit to a ground or busbar usually connected at the electrical panel. This gives currents circulation through your electrical system, which allows electricity to be fully utilized. Additionally, this prevents faulty or excess currents from residing in your outlet.
Does the neutral wire carry current?
A neutral wire is used to complete the flow of electricity, it acts as a return path for the hot wire current. During normal operations, the neutral wire will carry current. We can see neutral in most of the electrical equipment, mostly in non-linear loads.
Where is the neutral wire in a switch box?
Checking The Switch Box
- Turn off your breaker box.
- Take off the trim plate over the switch.
- Remove the screws from your switch and pull out the existing switch to look at the wires.
- If you see a white wire (or group of them), it is VERY likely that you have a neutral in that switch box.
Can I use ground as neutral?
a ground and a neutral are both wires. unless they’re tied together with other circuits, and not a ‘home run’ back to the panel, there is no difference between the two where they both end up on the same bus bar in the box.
Can I install a smart switch without a neutral wire?
Yes, you can install a smart switch without a neutral wire. There are some smart light switches and dimmers that do not require a neutral wire. These are great for DIY installers looking for an effective smart lighting solution.
Why is a neutral wire needed?
Neutral wire carries the circuit back to the original power source. More specifically, neutral wire brings the circuit to a ground or busbar usually connected at the electrical panel. This gives currents circulation through your electrical system, which allows electricity to be fully utilized.
Can you use the ground wire as a neutral for switches?
Can you use ground as a neutral for smart switches? The ground wire is often green and will be connected to the metal casing of the light switch. Almost every configuration will have a ground wire connected to the metal casing of the switch. While connecting the neutral of a smart switch to ground might work, never do this!
How do I know if my light switch has a neutral?
You’ll know you have a neutral wire if there is a coil of white or gray wires behind the light switch, not connected to the switch. If you don’t have a coil behind the light switch, you probably only have three wires – a black, white and copper wire.
Why do smart light switches need a neutral wire?
In the case of smart light switches, they typically require a neutral wire because they need to be powered all the time. The neutral wire allows the circuit to be completed and the switch to be powered on.
How do I know if my circuit breaker box is neutral?
Turn your breaker box off. Remove the trim plate covering the switch. Take out the screws from the switch. Pull out the existing switch so you can examine the wires. A white wire or group of white wires mean there’s a strong chance the box contains neutrals. At this point, you need to make sure the wire is neutral.
