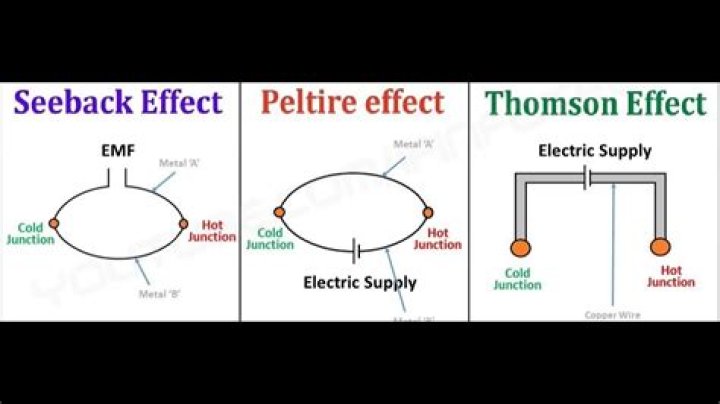

The Seebeck Effect and the Peltier Effect can both be classified under the term thermoelectric effect. Any thermoelectric effect involves the conversion of differences in temperatures into voltage differences. The Seebeck and Peltier Effects are different manifestations of the same physical process.
What is thermoelectric effect explain Seebeck effect with example?
The Seebeck effect is a phenomenon in which a temperature difference between two dissimilar electrical conductors or semiconductors produces a voltage difference between the two substances. • When heat is applied to one of the two conductors or semiconductors, heated electrons flow toward the cooler one.
Is Peltier effect reverse of Seebeck effect?
The Peltier effect is the reverse phenomenon of the Seebeck effect; the electrical current flowing through the junction connecting two materials will emit or absorb heat per unit time at the junction to balance the difference in the chemical potential of the two materials.
What type of current is produced in thermoelectric effect?
Heating one end of a thermoelectric material causes the electrons to move away from the hot end toward the cold end. When the electrons go from the hot side to the cold side this causes an electrical current, which the PowerPot harnesses to charge USB devices.
What is difference between Seebeck effect and Peltier effect?
The Seebeck effect is when electricity is created between a thermocouple when the ends are subjected to a temperature difference between them. The Peltier effect occurs when a temperature difference is created between the junctions by applying a voltage difference across the terminals.
What is neutral temperature in Seebeck effect?
The temperature of the hot junction at which the thermo emf becomes maximum is known as neutral temperature (θn). When the temperature of the hot junction is increased beyond neutral temperature, thermo emf starts to decrease and ultimately becomes zero at temperature θicalled temperature of inversion.
What do you mean by Thomson effect?
Thomson effect, the evolution or absorption of heat when electric current passes through a circuit composed of a single material that has a temperature difference along its length. This transfer of heat is superimposed on the common production of heat associated with the electrical resistance to currents in conductors.
What causes thermoelectric effect?
The effect is caused by charge carriers within the material (either electrons, or places where an electron is missing, known as “holes”) diffusing from the hotter side to the cooler side, similarly to the way gas expands when it is heated. The thermoelectric property of a material is measured in volts per Kelvin.
What is difference between Peltier effect and Seebeck effect?
What is the converse of Peltier effect?
Seebeck effect is the converse of Peltier effect. See beck Effect: When two wires composed of dissimilar metals are joined at both ends and one of the ends is heated, there is a continuous current which flow in the thermoelectric circuit.
How does the Seebeck effect work?
The Seebeck effect is a direct energy conversion of heat into a voltage potential. The Seebeck effect occurs due to the movement of charge carriers within the semiconductors. This buildup of charge creates a voltage potential that is directly proportional to the temperature difference across the semiconductor.
What is the Seebeck effect used for?
The German physicist Thomas Johann Seebeck discovered (1821) the effect. The Seebeck effect is used to measure temperature with great sensitivity and accuracy (see thermocouple) and to generate electric power for special applications.
What is the use of Seebeck effect?
Seebeck effect is used in thermoelectric generators (Seebeck generators).These thermoelectric generators are used in power plants to convert waste heat into electricity. 2. This effect is utilized in automobiles as automotive thermoelectric generators for increasing fuel efficiency.
What is Seebeck effect in thermoelectric generator?
Seebeck effect A thermoelectric circuit composed of materials of different Seebeck coefficients (p-doped and n-doped semiconductors), configured as a thermoelectric generator. If the load resistor at the bottom is replaced with a voltmeter, the circuit then functions as a temperature-sensing thermocouple.
What are the Seebeck and Peltier effects?
The Seebeck and Peltier effects are thermoelectric phenomena that explain the operation of thermocouples, temperature sensors with 2 different materials. This phenomenon was discovered in 1821 by the German physicist Thomas Johann Seebeck. Considerate the circuit below with 2 different metals A and B.
Is the Seebeck coefficient constant in temperature?
In different materials, the Seebeck coefficient is not constant in temperature, and so a spatial gradient in temperature can result in a gradient in the Seebeck coefficient. If a current is driven through this gradient, then a continuous version of the Peltier effect will occur.
