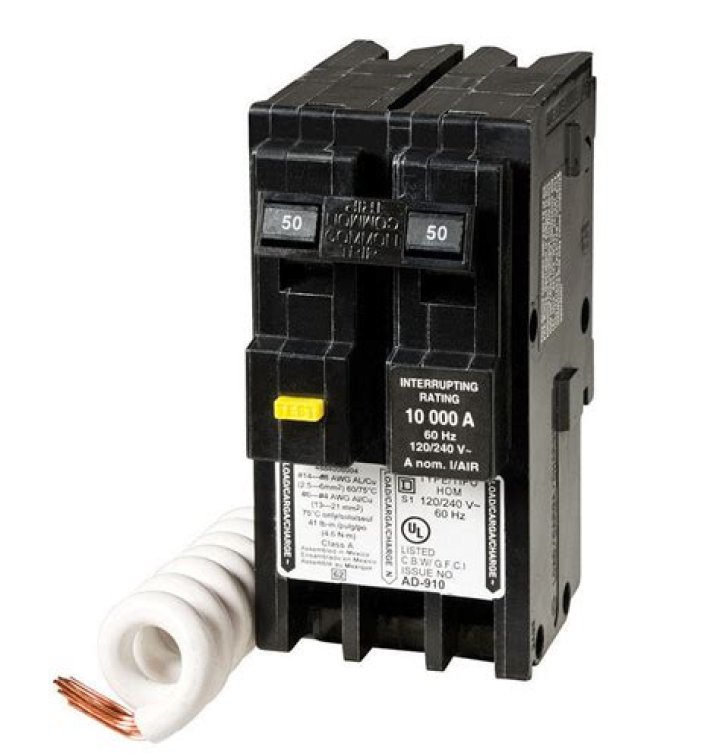

This 50-amp electric switch protects two hot wires from hazardous electrical accidents like overloading and short circuits. A double-pole 50A breaker commonly serves its purpose for those big appliances that pull an immense amount of electrical load. It can supply 240V or 120/240V to a circuit.
Are all 50 amp circuit breakers the same?
The circuit load will determine the breaker size you need – and you’ll need to make sure to get the right brand, as all breakers are not interchangeable. Load capacity: Determine the amp size of the circuit breaker you need to install based on the total circuit load. Most appliances have the amp rating listed on them.
How many amps is a double-pole 50 amp breaker?
The breakers themselves are relatively narrow and occupy a single slot in the home’s breaker box. Double-pole breakers, on the other hand, are typically rated for 20 to 60 amps and supply 240-volt power to large appliances, like electric dryers and ranges.
What size wire do I need for a 50 amp double-pole breaker?
The minimum wire gauge for a 50-amp breaker is eight gauge, and if the current draw is expected to remain close to the 50-amp limit for an extended period, you should use six-gauge wire.
Is a double pole 50 amp breaker 100 amps?
It is 100 amp. And the two 50 amps breakers that are tied together are 50 amps, not 50 + 50 = ! 00. That 2 pole 100 amp CB can provide either 100 amps @ 240 volts or 200 amps @ 120 volts but in answer to your question as Chris stated it’s 100 amps.
Is a double pole breaker twice the amps?
Since each leg of 240 volt circuit offers 120 volt potential to ground, then you’re getting two legs of out-of-phase 120 volt when you use double breaker, and doing so doubles the voltage and doubles the watts (power), it does not halve the amps.
How many breakers can you have on a 50 amp panel?
The National Electrical Code (NEC) specified that a lighting and appliance branch circuit panelboard could not contain more than 42 overcurrent devices (circuit breakers).
How do you install a double pole breaker?
Install the double pole circuit breaker on the existing breaker panel. Position the double pole circuit breaker horizontally using your hand. The switch should face the middle portion of your breaker panel. The screws at the back of the circuit breaker should face sideways on the wall.
What is a square D circuit breaker?
A Square D shunt trip breaker is a type of circuit breaker with a built-in indicator and remote tripping mechanism. The indicator is a clear plastic window that shows a black line when the circuit is in good condition and a red line when the circuit is broken.
What is a double pole breaker?
“Double pole” circuit breakers are used in this case, which consist of two single circuit breakers whose trip handles are physically tied together. That way, if either “hot” leg draws too much current, both breakers will trip simultaneously, effectively stopping all voltage to the appliance.
