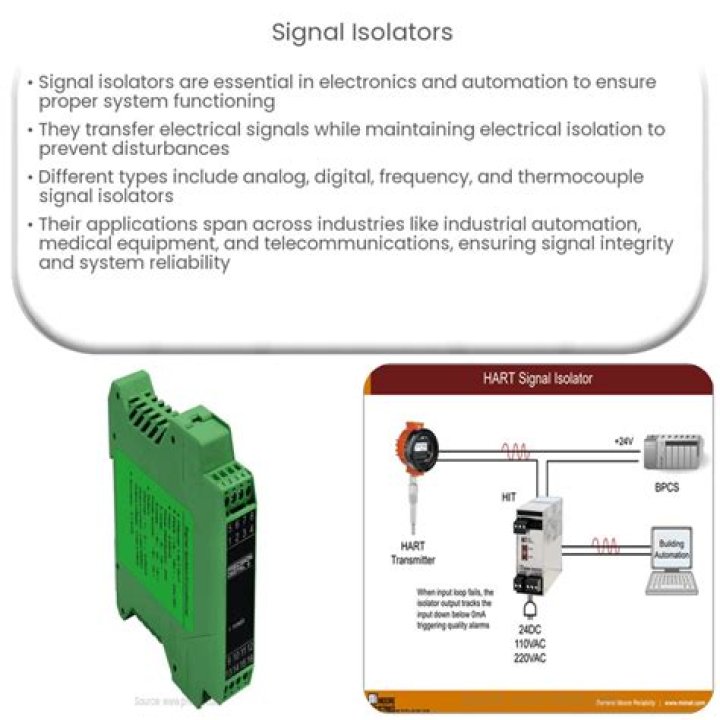

Signal isolators are used in industrial, medical, and other environments in which electrical isolation is essential for safety. Signal isolators can also be used to amplify signals, enable instruments to be added to an overburdened loop, or to step down dangerous, high-voltage signals to safer levels.
How does a current isolator work?
A loop powered isolator is basically a center tapped transformer which has the input 4/20mA current flowing through its center tap on the primary. An oscillator circuit alternately switches the current through each half of the primary. This alternating current creates a current in the secondary of the transformer.
What is an isolated signal?
Isolation is a means of preventing direct current (DC) and unwanted alternating current (AC) between two parts of a system while still enabling signal and power transfer between those two parts. Pulsating signals on the secondary side are rectified and filtered to generate an isolated DC supply.
Why opto isolator is used?
The main function of an opto-isolator is to block such high voltages and voltage transients, so that a surge in one part of the system will not disrupt or destroy the other parts. An opto-isolator connects input and output sides with a beam of light modulated by input current.
What is the most common method for providing isolation to an input module?
Optical isolation is one of the most commonly used methods for isolation. One benefit of using optical isolation is its immunity to electrical and magnetic noise.
Which principle is used in isolator?
Working Principle: An Isolator utilizes a transversely magnetized ferrite junction to direct incoming microwave energy. When a signal enters the device, it travels in the direction of the flowing magnetic field. In this way the signal is directed to the desired port on the device.
What is the function of voltage and current isolator?
The Current/Voltage Isolator converts a high-level current and a high-level voltage (ac or dc) into two low-level (0 to ±10 V) output signals, electrically isolated from the high-level signal source. This allows observation of the signal waveforms in power circuits using a conventional oscilloscope.
How do you test for mA?
Access the signal wires (typically by removing the cover on transmitter). Select the mA dc measurement function and connect the test leads for mA measure. Locate the mA signal wire, disconnect one lead of the signal wire and put the meter in series with the mA signal wire and view the mA measurement.
How do you isolate a circuit?
Isolate electricity to a particular electrical appliance by turning the switch on the wall socket to the “Off” position. By doing so you won’t need to trip the switch or remove the fuse that connects the circuit to all the wall sockets.
What is a 4-20mA power isolator?
The isolator must control current draw from the power supply in the output loop which is the 4-20mA signal. Since output and power share the same two wires, this type of isolator can be placed anywhere between the field sensing device and the PLC/DCS or monitoring device.
Where should the isolator be located?
Since output and power share the same two wires, this type of isolator can be placed anywhere between the field sensing device and the PLC/DCS or monitoring device. Usually, the isolator is located close to the field device. Since both the input and output signal are 4-20mA, location of the device is not critical.
Do I need a signal isolator for my current loop?
Since both the input and output signal are 4-20mA, location of the device is not critical. Other signal isolators are useful when adding and isolating a monitoring instrument to an existing current loop. When adding a field device such as a recorder or display, no additional power source is required for the added loop or for the isolator.
Why optoptical or galvanic isolation?
Optical or galvanic isolation eliminate ground loop errors, reduce noise, and block high voltage transient surges. All Acromag isolators will withstand 1500V AC for 60 seconds and provide continuous 250V AC or 354V DC common-mode protection of your precious equipment.
