The Lissajous pattern indicates the phase difference by the shape of the X-Y plot. A straight line indicates a 0º or 180º phase difference. The angle of the line depends on the difference in amplitude between the two signals, a line at 45º to the horizontal means the amplitudes are equal.
How do you measure phase and frequency explain with Lissajous figures?
Measurement of Phase Difference A Lissajous figure is displayed on the screen when sinusoidal signals are applied to both horizontal & vertical deflection plates of CRO. Hence, apply the sinusoidal signals, which have same amplitude and frequency to both horizontal and vertical deflection plates of CRO.
What is the measurement of frequency?
hertz (Hz)
Frequency is the rate at which current changes direction per second. It is measured in hertz (Hz), an international unit of measure where 1 hertz is equal to 1 cycle per second.
How is the frequency of unknown signal determined?
The unknown frequency of the signal is determined by the direct measurement method, observation of Lissajous curves and beats observations.
How is a Lissajous pattern formed?

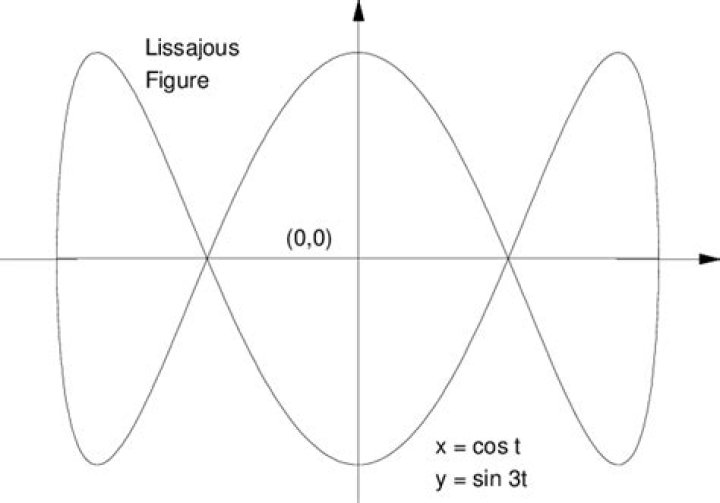

Lissajous figure, also called Bowditch Curve, pattern produced by the intersection of two sinusoidal curves the axes of which are at right angles to each other.
What is the use of Lissajous pattern?
A Lissajous figure is a pattern which is displayed on the screen when sinusoidal signals are applied to both horizontal & vertical deflection plates of CRO. These are used to measure the frequency of the given signals and phase difference between the signals.
What is Hz equal to?
one cycle per second
The number of periods or cycles per second is called frequency. The SI unit for frequency is the hertz (Hz). One hertz is the same as one cycle per second.
What is the relation for frequency determination in lissajous method?
To determine the frequency from any Lissajous figure, count the number of horizontal loops in the pattern, divide it by the number of vertical loops and multiply this quantity by fh (known or standard frequency).
What is meant by Lissajous figure?
Definition of Lissajous figure : any of an infinite variety of curves formed by combining two mutually perpendicular simple harmonic motions, commonly exhibited by the oscilloscope, and used in studying frequency, amplitude, and phase relations of harmonic variables.
Which of the following parameters can measured using the Lissajous pattern?
Lissajous figures are used for the measurement of frequency and phase difference. The patterns used to measure phase and frequency with a cathode ray oscilloscope are called Lissajous pattern.
What characteristics of the Lissajous pattern indicates the ratio of the frequencies that form the pattern?
The simplest Lissajous patterns appear in the oscilloscope display when the frequencies of the signals are the same, i.e. their ratio is 1:1. When this condition is met and when the phase shift is 0°, the display consists of a straight line sloping upward from the left side of the screen to the right side.
How do you use Lissajous pattern to measure frequency?
4. Frequency Measurements Using Lissajous Figures Lissajous pattern also helps to measure frequency. The signal whose frequency is tobe measured is given 1 F plates or vertical plates and the signal whose frequency is given toX-plates or horizontal plates.
What are Lissajous patterns?
These patterns are called ‘Lissajous Patterns’. When two sinusoidal voltages of equal frequency which are in phase with each other are applied to the horizontal and vertical deflection plates, the pattern appearing on the screen is a straight line as is clear from the below figure.
What is the Lissajous pattern when phase shift is 45?
When the phase shift is 90° or 270°, and both signals are the same frequency, a perfect circle displays. When the phase shift is 45°, the Lissajous pattern is an ellipse whose centerline slopes upward from left to right.
What is the use of Lissajous figures in audio analysis?
Lissajous Figures is used as: 1 Determining an unknown frequency by comparing it with a known frequency 2 Checking audio oscillator with a known-frequency signal and find the frequency. 3 Checking audio amplifiers and feedback networks for phase shift.
