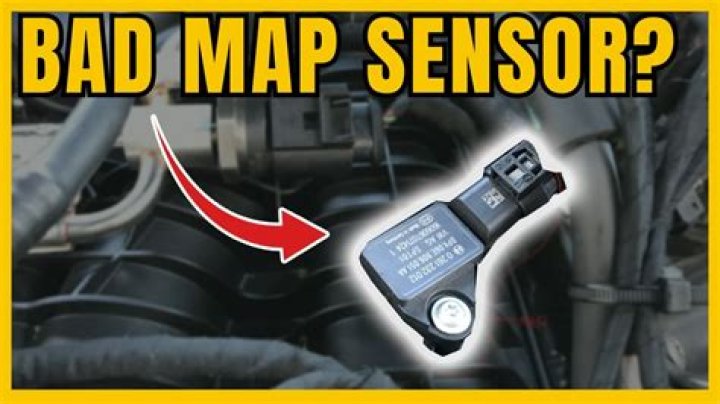

TMAP sensors fulfil the functions of standard MAP sensors. That is, they respond to the air pressure within the intake manifold and allow the Engine Control Module (ECM) to estimate two important parameters: Atmospheric pressure at key on. Engine load.
Where is TMAP sensor located?
It is located on the cold pipe, before the throttle body. This sensor is commonly called the TMAP Sensor, as it reads air temperature as well as pressure.
How do you clean a TMAP sensor?
Clean the outer surface of the MAP sensor using electric parts cleaner. Place the MAP sensor on a flat surface with the sensor facing upward. Spray a dry rag with electrical parts cleaner. Gently scrub the rest of the sensor with the rag, taking care not to scrub the sensor itself.
How do tmtmap sensors work?
TMAP sensors fulfil the functions of standard MAP sensors. That is, they respond to the air pressure within the intake manifold and allow the Engine Control Module (ECM) to estimate two important parameters: Atmospheric pressure at key on.
What does the MAP sensor do?
Map sensor is a manifold air pressure sensor. They go bad over time and is a well known failure part on Volvo. We change them around 60-80K as part of a full tune up on a turbo car. It measures the vacuum or pressure in the intake to detect turbo boost and the load the engine is under.
What is the voltage waveform of the absolute pressure MAP sensor?
At peak engine speed, the voltage waveform curves up to 2.5 V and back down to 2.1 V. There are no anomalies or drop-outs in either signal. Go to the drop-down menu bar at the lower left corner of the Waveform Library window and select, Manifold Absolute Pressure MAP sensor (analogue).
What happens when you disconnect the MAP sensor?
MAP and MAF are 2 different things. If you disconnect the MAF sensor and the car idles better or the same, then the MAF is bad. When a working MAF is disconnected, the engine usually stalls and dies. So I disconnected the MAF while the car was idling and the idle got rough for a second and then smoothed out.
