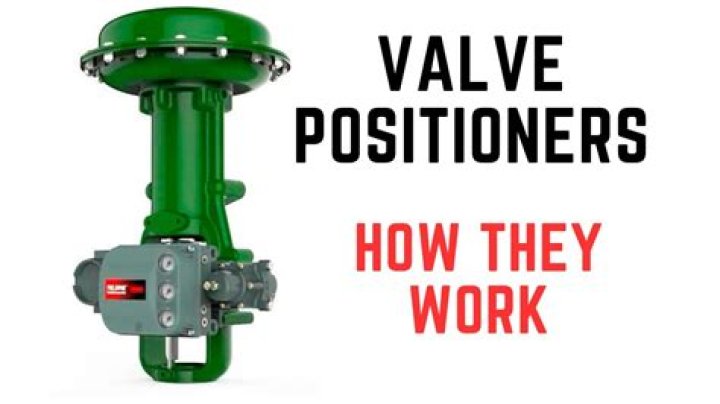

A valve positioner is a device that interfaces with the process controller and the actuator, and is connected to the valve stem so it can sense the exact position of the valve. The positioner receives an input signal from the process controller and outputs a signal to the actuator to move the valve.
How does a digital valve positioner work?
A Digital Valve Positioner receives an electric signal (typically 4-20mA, HART, PROFIBUS, or Foundation Fieldbus) from a controller. It then sends a corresponding pneumatic signal to a pneumatic valve actuator.
What is a pneumatic valve positioner?
The Pneumatic Valve Positioner is an instrument working on force balance principle to position the Control Valve stem in accordance to a pneumatic signal received from a controller or manual loading station, regardless of packing box friction, actuator hysteresis or unbalanced forces on the valve plug.
What is valve positioner why it is used how the performance is affected by it?
Positioners are used to feedback position information and ensure that the valve is in the correct position regardless of the opposing forces. The purpose of the valve positioner is to improve the accuracy of the valve action. The positioner can reduce the effect of many dynamic variations.
What role do valve positioners play in valve actuation and control applications?
Valve Positioner Basics A valve positioner acts as an interpreter between the control valve assembly and the control system. Its job is to translate output signals from the control system and adjust the air to the actuator that moves the valve to the desired position.
How do you calibrate a control valve positioner?
An Overview of Step-by-Step Calibration of Control Valve Positioner
- The measurable pressure range is shown on the supply gauge.
- Set the input value to the lowest reading value.
- Further slowly adjust the nozzle pin to get zero value.
- Then slowly increase the input pressure value to 3psi, and check if you get zero output.
How do you calibrate a Fisher DVC6200?
Steps to Calibrate a DVC6200 Controller
- Hook up a HART® communicator to the DVC6200 in parallel with a 4-20 mA loop across the “loop” terminals.
- Apply a 4 mA signal to the DVC and power up the HART communicator.
- First, put the instrument in “not in service” mode.
- Choose “not in service” and press enter.
What is the main purpose of the control valve positioner Mcq?
A positioner adjusts the pneumatic output to a valve actuator so that the requested position of the valve from a controller is achieved.
How does a Fisher positioner work?
The pneumatic control valve positioner’s working principle In the instrument input, the air pressure will act on the bellows, making it expand or compress. The bellows connect to the beam, which measures the feedback from the valve stem through the cam. It also moves the flapper-nozzle system.
What is a 3582 pneumatic valve positioner used for?
Fisher 3582 pneumatic valve positioners are used with diaphragm-actuated, sliding-stem control valve assemblies.
What is a Fisher pneumatic valve positioner?
Fisher. Fisher 3582 pneumatic valve positioners are used with diaphragm-actuated, sliding-stem control valve assemblies. This pneumatic valve positioner receives a pneumatic input signal from a control device and modulates the supply pressure to the control valve actuator, providing an accurate valve stem position that is proportional to
How do you adjust the arm Index on a Fisher positioner?
Positioner Beam and Arm Index Marks. Photo Credit: Fisher Apply an input signal equal to the low value of the input signal range. If your positioner is a 0.2bar – 1.2 bar range (3 to 15psig) input range, set the input to 3psig. Loosen the nozzle locknut and adjust the nozzle until the actuator moves to the proper end of its travel.
How to calibrate a control valve positioner?
The set up below illustrates the basic components required to calibrate a control valve positioner: Shut off the supply pressure to the valve positioner. Connect or reconnect the necessary tubing from the valve positioner output to the actuator supply connection.
