Wiring Harness Manufacturer’s Association

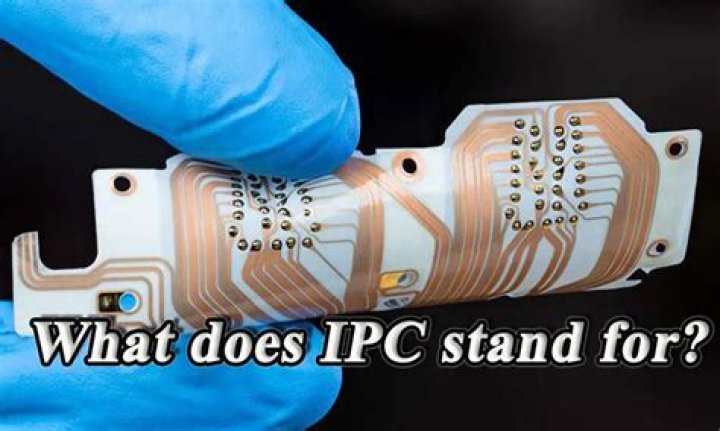

IPC stands for Institute for Printed Circuits, which is the former name of the Association Connecting Electronics Industries. WHMA stands for Wiring Harness Manufacturer’s Association. Together, these organizations prescribe the practices and requirements for the manufacture of cable, wire and harness assemblies.
What is the IPC standards for wiring harnesses?
What is the IPC/WHMA-A-620 Standard? The IPC/WHMA-A-620 Standard Revision D remains the only industry-consensus standard for Requirements and Acceptance of Cable and Wire Harness Assemblies. IPC and the Wiring Harness Manufacturer’s Association (WHMA) continue to work together to develop this significant update.
What is the minimum Imperial English length tolerance allowed when building a cable?
Example: For a cable measuring 4 ½ feet long, the recommended tolerance values are + 2 inches and -0 inches, which means that the cable should never be shorter than 4 ½ feet but may be up to 2 inches longer (4 ft, 8 inches).
What is IPC Whma a 620 certification?
The IPC/WHMA-A-620 is one of several IPC Certification programs. It is an industry developed program for individuals and companies engaged in the manufacture, use and installation of cable and wire harness assemblies. It encompasses training, certification and the supply of instructional materials.
What are IPC 620 standards?
While IPC 610 is the standard for PCB production, the IPC 620 standard (IPC-WHMA-A-620) prescribes practices and requirements for the manufacture of cable, wire and harness assemblies.
What are the IPC standards?
IPC standards are the electronics-industry-adopted standards for design, PCB manufacturing, and electronic assembly. There’s an IPC standard associated with just about every step of PCB design, production, and assembly (see Figure 1).
What does IPC 610 cover?
IPC-A-610 covers the inspection of the final product, which includes all of the above plus all the other issues related with final assembly, which are not covered in the soldering standard, such as connector, assembly, etc., and it has all the illustrations and pictures which defines the differences between the …
What is IPC 6012D?
IPC-6012D: Qualification and Performance Specification for Rigid Printed Boards.
