IC-74147 is a Decimal to BCD Priority Encoder. It is a TTL encoder that featured priority decoding of the inputs to ensure that only the highest-order data line is encoded. The ‘147 and ‘LS147 devices encode nine data lines to four-line (8-4-2-1) BCD.
Which IC is used for encoder?
A popular example of an Encoder is the Holtek Encoder H12E used for parallel to serial conversion. It is a type of CMOS IC with 8 address pins and 12 data pins. It is an 18 pin IC. It is used in RF communication where it converts the 12 bit parallel data to serial form.
What is encoder IC?
An encoder IC is manufactured to encode digital data from one format type or code to another that can accept multiple inputs and generate multi-bit output.
What is IC 74148?
74148 is an 8 data line to 3 line decoder IC. This IC ensures that only the highest priority or order data is encoded. The device has an inbuilt cascading circuit when input EI and output EO are enabled which allows for octal expansion without an external cascading circuit.
Where are decoders used?
Introduction to Decoder The decoder is an electronic device that is used to convert a digital signal to an analog signal. It allows a single input line and produces multiple output lines. The decoders are used in many communication projects that are used to communicate between two devices.
What is decimal to BCD encoder?
A decimal to BCD (binary coded decimal) encoder is also known as 10-line to 4-line encoder. It accepts 10- inputs and produces a4-bit output corresponding to the activated decimal input.
Where are Decoders used?
Which of the following IC is Decoder?
Which of the following is a decoder IC? Explanation: 8870 is a DTMF decoder circuit, which decodes DTMF tune and produces corresponding output. Explanation: DTMF is the short form of Dual Tone Multiple Frequency.
What is the function of IC 7447?

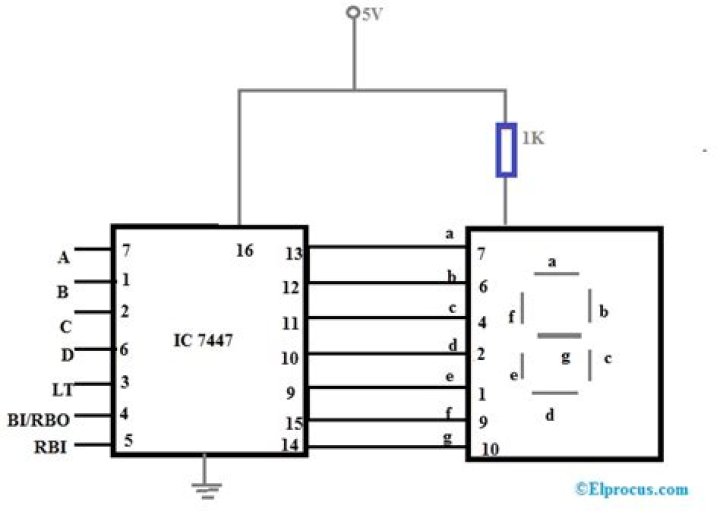

7447 or 74LS47 decodes BCD into 7 Segments, which means it accepts a binary coded decimal or BCD Values as input and decoded into a pattern that drives a 7-segment for displaying digits 0 to 9, so its name is BCD to 7 segment driver or decoder. Its input is 4 lines BCD data and generates complements as output.
What is 74LS138 decoder?
The IC 74LS138 is a 3 to 8 line decoder integrated circuit from the 74xx family of transistor-transistor-logic-gates. The main function of this IC is to decode otherwise demultiplex the applications. The setup of this IC is accessible with 3-inputs to 8-output setup.
What does the IC 74147 do?
74147 datasheet specifiest that this IC is a TTL encoder feature priority decoding of the inputs to ensure that only the highest-order data line is encoded. The ’147 and ’LS147 devices encode nine data lines to four-line (8-4-2-1) BCD.
How many data lines are encoded in 7474147?
74147 encodes nine data lines to four-line BCD. the implied decimal zero condition does not require an input condition because zero is encoded when all nine data lines are at the high logic level. You must be logged in to post a review.
What are the 9-input priority encoders of the ic06?
The IC06 The 74HC/HCT 9-input priority encoders accept data from nine active LOW inputs to . Soft Start 2kV ESD Protection The TSM integrated circuit incorporates all . The SN54/74LS and the SN54/74LS are Priority Encoders. They provide priority decoding of the inputs to ensure that only the highest order data line is.
What is the BCD of the ‘147 and ‘ls147?
The ’147 and ’LS147 devices encode nine data lines to four-line (8-4-2-1) BCD. The implied decimal zero condition requires no input condition, as zero is encoded when all nine data lines are at a high logic level.
