Backstabbing means that instead of using screw terminals to connect wires to outlets and switches, the wire is pushed into a connector that grabs the wire inside the device. This creates a loose connection, and loose connections cause the wires in outlets to burn up and kill the rest of the circuit.
What is the difference between outlets and receptacles?
A receptacle is always an outlet but an outlet is not only a receptacle. An outlet is defined as “A point on the wiring system at which current is taken to supply utilization equipment”. A receptacle however has always been something that an attachment plug is connected to.
What does it mean to daisy chain outlets?

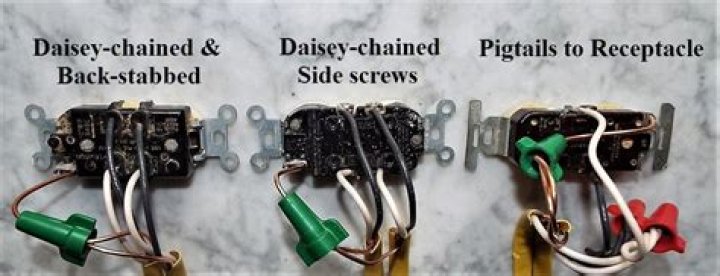

Daisy chaining is the practice of running wires from receptacle to receptacles via either back-stabbing (sticking the wires in holes in the back of the receptacle—left of picture) or using the screws on the side of the receptacle (center of picture).
Can you daisy chain electrical outlets?
Electrical receptacles have two pairs of terminals so that you can daisy-chain multiple receptacles on a single circuit in an existing house.
How do you remove a Backstabbed outlet?
Step 3 of 4: Removing The Backstabbed Wires Hold the plier or wire cutter in one hand. Grab the receptacle on the other hand. Now twist the wires and pull back. They’ll come out in time.
Is a light switch considered an outlet?
However, if the switch operates lighting outlets for outdoor luminaire, closets or other loads not terminated in bedroom space then AFCI protection is not NEC required, because a switch is not considered an outlet*. This would include a receptacle outlet, a lighting outlet, but not a switch.
Can you piggyback off an electrical outlet?
Answer: Absolutely you can. Using 12-3 wire (for a 20 amp circuit, or 14-3 wire for a 15 amp circuit) splice the new wire to both wires on the “hot” side of the outlet and to the white wire. You may need to cut 6″ pieces of wire to go from each wire nut to the outlet. Splice the ground to the existing ground as well.
How do you fix a backstabbed electrical outlet?
Use a screwdriver to disconnect the cover plate. Then unscrew the receptacle from the box. Inspect the back end of the receptacle. If you see wires inserted into the 4 holes in the back, you have a backstabbed outlet and will need an electrician to rewire it correctly.
Are backstab receptacles bad for You?
But backstab receptacles developed a bad reputation with many electricians due to loosening of the spring tension over time, with a resulting short, as in the photo above of the melted back of a failed receptacle.
Can you use a stab in receptacle with 12 wire?
Some electricians will now only use side screw connections and, because of the failures, Underwriter’s Laboratory (UL) revised their standard for stab-in receptacles in 1996 to allow them to be used only with #14 copper wires, eliminating their approval for use with larger #12 copper wire.
Are backstabbed wires dangerous?
Well, it turns out that backstabbed wires are pretty dangerous and have even been found to cause electrical fires. We’ll explain what backstabbed outlets look like and how to fix the problem so that your family and home is protected.
