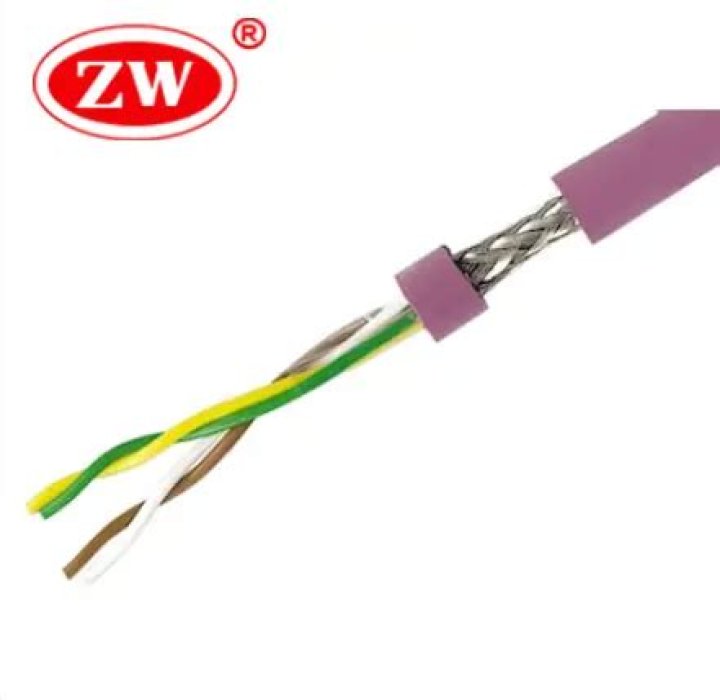

CAN-Bus Data Cable reduces wiring, electronic interference, and offers high-speed network communication. It is resistant to abrasions and cuts, while also has an excellent resistance to oil and chemicals. The SAE J1939/15 is unshielded with no drain and the SAE J1939/11 CAN-Bus Cable is shielded with drain wire.
CAN bus system wiring?
CAN bus uses two dedicated wires for communication. The wires are called CAN high and CAN low. When the CAN bus is in idle mode, both lines carry 2.5V. When data bits are being transmitted, the CAN high line goes to 3.75V and the CAN low drops to 1.25V, thereby generating a 2.5V differential between the lines.
What does the CAN bus system do?
The CAN bus system enables each ECU to communicate with all other ECUs – without complex dedicated wiring. Specifically, an ECU can prepare and broadcast information (e.g. sensor data) via the CAN bus (consisting of two wires, CAN low and CAN high).
Can Bus 3 wires?
The CAN-bus uses 3 wires (CANH, CANL, GND) for communication between nodes. The CANH and CANL signal form a differential signal pair. Differential signals are much more immune against external influences such as high voltage wiring, inductive loads.
CAN bus connector types?
Many of the additional connector pin outs are used with CANopen and include: 10-pin header [5 x 2 multipole], RJ10 [Modular Connector Jack], RJ45 [Modular Connector Jack], 5-pin mini [circular], 5-pin micro [circular], Open Style, 7/8/9-pin round connectors.
How do you diagnose a CAN bus system?
Checking Device CAN Port
- Unplug the connector from the device.
- Measure resistance on the connector pins of the device between CAN HI and CAN LOW.
- Measure resistance between CAN HI and GROUND.
- Measure resistance between CAN LOW and GROUND.
CAN Bus connector types?
CAN you solder CAN Bus wires?
To establish the connection between the CAN-Bus and the new device soldering is the commonly applied method. An error often made here is to use an electric soldering iron to do the job. The sound advice therefore is to always use a gas-heated soldering iron!
What is the maximum cable length for a CAN bus?
The electrical characteristics of the CAN bus cable restrict the cable length according to the selected bit rate. You can use cabling up to 250 meters with the baud rate of 250 kbit/s. The maximum bus length with a bit rate of 10 kbit/s is 1 km, and the shortest with 1 Mbit/s is 40 meters.
Can bus Comm. cables?
CAN bus cables allow devices to communicate without a host computer. CAN (Controller Area Network) is used in a variety of applications to transmit signals and conduct power in automotive and industrial machinery, trucks, and agricultural equipment.
Can bus interface connector?
The CAN bus [CANbus] is a Balanced (differential) 2-wire interface running over either a Shielded Twisted Pair (STP), Un-shielded Twisted Pair (UTP), or Ribbon cable. Each node uses a Male 9-pin D connector . The Bit Encoding used is: Non Return to Zero ( NRZ) encoding (with bit-stuffing) for data communication on a differential two wire bus.
What is a bus drop cable?
Bus Drop Cable is intended for use in indoor or outdoor applications for connection of stationary or portable equipment to facilitate relocation of equipment. Rated for indoor and outdoor use in wet or dry locations.
