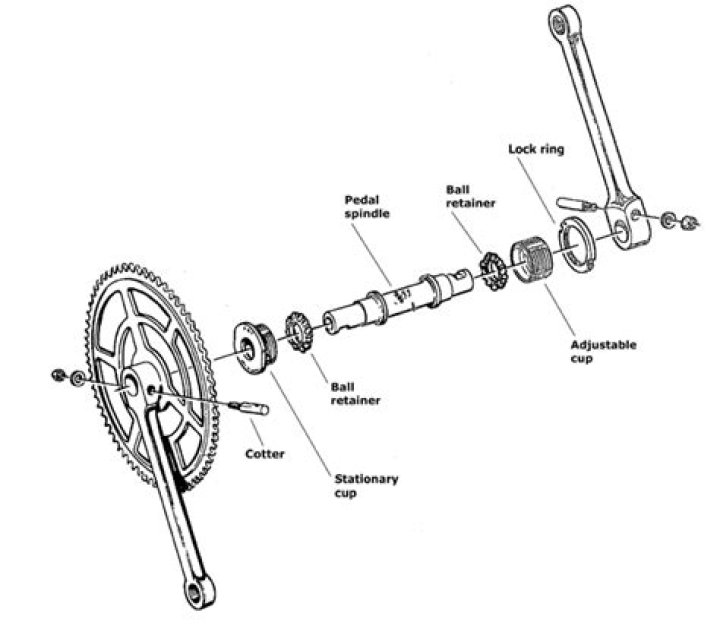

The cups of this cottered crank bottom bracket are fixed into the frame with the bearing races pointing outwards. It holds quite a number of loose ball bearings and another cup is pressed on the massive steel spindle. Unlike with other bottom brackets, you don’t have to remove the crank arm to fix the play.
Can you service a sealed cartridge bottom bracket?
Servicing them may be possible only if the design has the bearing seals exposed. Full one piece sealed cartridge style bottom brackets (octalink,square taper) are simply replace only. Depending on which sealed cartridge you have, you would need the appropriate tool to remove and replace them.
What is a cartridge sealed bottom bracket?
A cartridge bottom bracket usually has two main components. The cartridge contains the sealed bearings and spindle, and is usually threaded into the right (or drive side) of your frame. The lockring supports the opposite end of the cartridge and is usually threaded into the left (or non-drive side) of your frame.
What are cottered cranks?
Installing cotters You might have to replace the bottom-bracket spindle too. French cottered spindles have a diameter of 15.5 mm (0.610″) and most others, 0.625″ (5/8″). The flat on a cotter is at an angle to the centerline of the cotter.
How long should a cartridge bottom bracket last?
They can get “brinneled” or damaged in a crash or something, but 1500 miles is absurd. As for a bottom bracket, on the low end, maybe 5000 miles. The basic Shimano one most people use (UN51/55/similar) can reasonably expect 10k+ miles. But sometimes you get unlucky and get a bottom bracket that lasts maybe 500 miles.
Are Sealed bottom bracket better?
A good bottom bracket is a “fit it and forget it” deal. A sealed unit is what’s current and popular because it doesn’t require any servicing. They last a long time and can easily be replaced if they wear out.
How do cottered cranks work?
The flat on a cotter is at an angle to the centerline of the cotter. When installing cotters, they must face in opposite directions so that the angles of the flats will cancel out and the cranks will wind up 180 degrees apart. Replacement cotters that fit well are not always easy to find.
What are square tapered bottom brackets called?
Most square tapered bottom brackets come in the form of a “cartridge” and are thus called “cartridge” bottom brackets… no surprise there… There are several types of square taper cartridge bottom bracket are available on the market today.
Which side is the drive side of a cartridge bottom bracket?
The drive-side is the crucial side of course since that constitutes the cartridge bottom bracket as a whole. Using the wrench employed to remove the left, non-drive side lockring, may work. But the drive side of a bottom bracket is generally tighter than the non-drive side.
Are Cottered bottom bracket spindles still used?
Cottered Bottom Bracket The square taper bottom bracket substituted using a cotter pin to secure the crank to the spindle with bolts into the spindle. At First Components we still produce a lot of cottered bottom bracket spindles as they are still the go-to solution for many bikes. They are still a cheap and efficient crank/drivetrain solution.
How to fix a crank bottom bracket that has ruined?
Simply install this press fit cartridge square taper design into your ruined bottom bracket shell. Install your old cranks, and away you go . . . Besides this single-case instance, other types include bottom brackets with alloy cups and an alloy sleeve. Cartridges with two steel cups and an alloy sleeve.
