CVBS or Composite Video Blanking and Sync is the conventional analog signal delivered through an analog BNC connector. In English, that basically means a pair of wires can transmit video and power from the camera to the recorder producing video surveillance. Think of CVBS being like windows 7.

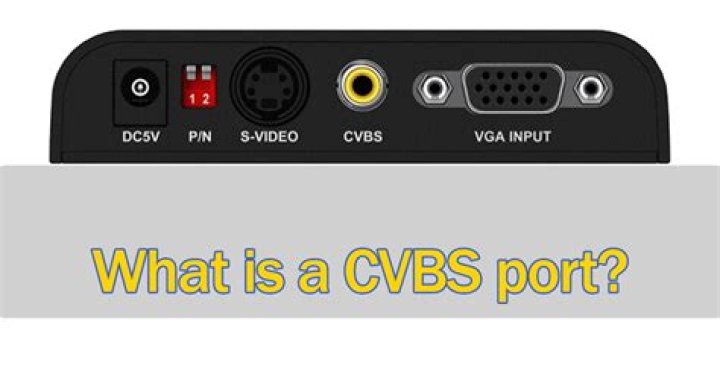

What is CVBS interface?
Composite/CVBS Interface Composite video signals, which are also referred to as CVBS, are the most commonly used analog video Interface. They combine brightness information (luma), colour information (chroma), and synchronizing signals on just one cable. The connector is typically an RCA jack.
Is CVBS the same as RCA?
CVBS is a widely used standard, also known as baseband video or RCA video, which is way of a traditional image data transmission from the National Television Systems Committee (NTSC) television signal, which transmits data in analogue waveforms.
What is CVBS audio?
Composite Video also referred to as the CVBS (Composite Video Baseband Signal) is an analogue video transmission signal without audio which contains image data in standard resolution of 480 and 570 or (480 lines or 576 lines interlaced).
What is the difference between CVBS and TVI?
CVBS is “composite video base band signal.” For the security camera market world, this is what is considered original analog standard definition video cameras. TVI is high definition “transport video interface.” It’s a transport technology that transmits high definition analog video over a coaxial cable.
What is Cvbs in Dish TV?
The front end can be terrestrial, cable or satellite, while the video interfaces can be High Definition Multi-Media Interface (HDMI), component or Composite Video Baseband Signal (CVBS). The video interfaces help with the video input and output, and the audio interface does the same for audio.
What is the difference between YUV and CVBS?
YUV is a scaled version of YcrCb. This YUV signal should not be confused with the analog YUV inputs found on high-end TVs. CVBS (Color, Video, Blank and Sync) is a composite analog signal. In this format, a single analog video signal includes information on sync, color and luminance.
Is CVBS HD?
CVBS stands for “Composite Video Blanking and Sync”. It is a conventional analog signal delivered through an analog BNC connector. HD-TVI means “High DefinitionTransport Video Interface”, it is an Analog CCTV standard transmitted over coax supporting HD 720P to 3MP Video signal in real-time.
How do I change CVBS to AHD?
Answer : Before making the cameras from CVBS to AHD mode,please make sure that the DVR or XVR is auto mode ,which can support all kinds of modes such as AHD/CVI/TVI/CVBS. Then change the mode of camera in the DVR menu .
What does CVBS stand for in telecommunications?
(CVBS) or Composite Video Blanking and Sync is the conventional analog signal delivered through an analog BNC connector. In English, that basically means a pair of wires can transmit video and power from the camera to the recorder producing video surveillance.
What is CVBS video output?
CVBS is analog video signal which contains video only means no audio in it. Three standards are supported by composite video known as PAL , NTSC and SECAM . So CVBS provides Standard Definition signal at 480i and 576i. In other words it supports 960H where 960 is the maximum number of horizontal pixels of video.
What is CVBS camera?
CVBS means Composite Video Blanking and Sync. It is a type of video signal, mainly analog. BNC is a type of connector. In analog CCTV, CVBS video is usually delivered through a BNC connector, but it also can be delivered through an RCA (or phono) connector or other types (older cameras sometimes used a PL-259 connector).
