No metal has a Seebeck coefficient larger than 100 μV/K. The great majority has coefficients much smaller than 10 μV/K, as can be seen from Table 5.7. Some semiconductors have coefficients of some 300 μV/K at usable temperatures.
What is Seebeck coefficient explain it?
The Seebeck coefficient (also known as thermopower, thermoelectric power, and thermoelectric sensitivity) of a material is a measure of the magnitude of an induced thermoelectric voltage in response to a temperature difference across that material, as induced by the Seebeck effect.
What is the Seebeck voltage output range in thermocouples?
The Seebeck coefficients generally vary as function of temperature and depend strongly on the composition of the conductor. For ordinary materials at room temperature, the Seebeck coefficient may range in value from −100 μV/K to +1,000 μV/K (see Seebeck coefficient article for more information).
How is Seebeck coefficient measured?
Seebeck coefficient is measured by measuring the upper and lower temperatures T1 and T2 with the thermocouples pressed against the side of the sample, followed by measurement of thermal electromotive force dE between the same wires on one side of the thermocouple.
How do you calculate Seebeck coefficient?
thermoelectric generators generated voltage (V) is the Seebeck voltage and is related to the difference in temperature (ΔT) between the heated junction and the open junction by a proportionality factor (α) called the Seebeck coefficient, or V = αΔT.
What does a negative Seebeck coefficient mean?
electrons
The Seebeck coefficient may have different signs for different materials, negative for negatively charged carriers (electrons) and positive for positively charged carriers (electron holes).
What is Mott relation?
with the Onsager reciprocal relations, the Mott relation is another general relation linking different transport coefficients. 14 In the presence of a magnetic field, the Mott relation also holds for the off-diagonal elements of the transport coefficient tensors.
How do you increase Seebeck coefficient?
With this in mind, the Seebeck coefficient can be increased by the filtering of low energy charge carries at the interfaces, as pointed out by Zhao et al.13.
How do Seebeck coefficients vary with temperature?
Basically, the Seebeck coefficient is related to the fact that electrons are both carriers of electricity and heat. If a temperature gradient exists over a piece of electrically conductive wire, there is a net diffusion of electrons from the hot end toward the cold end, thereby creating an opposing electric field.
Why does Seebeck coefficient decrease with carrier concentration?
The electrical conductivity is proportional to carrier density and mobility (=n.q.u, where n is carrier density n-p), so that the S will decrease with increase of charge carrier concentration. Since the Seebeck is inversely proportional to the carrier density. n increases, Seebeck decreases as you said.
Why is the Seebeck coefficient larger in semiconductors?
The magnitude and sign of the Seebeck coefficient are related to an asymmetry of the electron distribution around the Fermi level. For example, the theory explains not only the different signs for metals but also why the Seebeck coefficient is much larger in semiconductors than in metals, as is obvious from Tables 1 and 2.
What is the Seebeck voltage?
In (quasi) equilibrium this field causes a voltage over the wire, the so-called Seebeck voltage. The Seebeck coefficient is defined as the Seebeck voltage per unit temperature and is a material property.

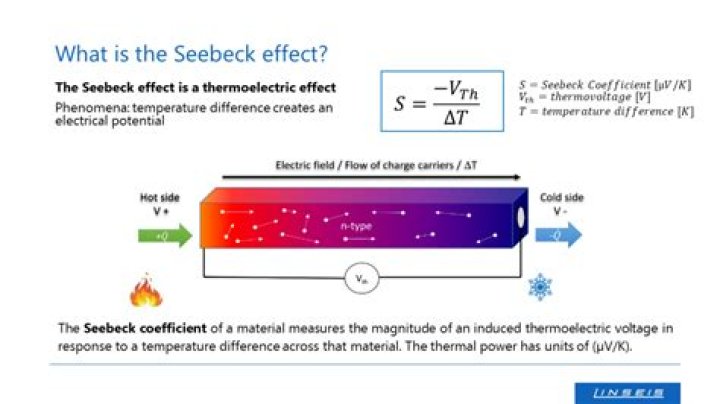

What is the Seebeck effect?
Seebeck effect is a manifestation of the fact that if two points in a conductor (or a semiconductor) are maintained at different temperatures, the charged carriers (electorns or holes) in the hotter region, being more energetic (and, therefore, having higher velocities) will diffuse towards region of lower temperature.
How do you find the Seebeck coefficient of a metal?
δ πδ22. 2 Since S = δV/δT, the Seebeck coefficient is given by S kT eEFO. ≈− π22. 2. Seebeck coefficient metals(4) For example, for Al, EFO= 11.6 eV so that at T = 300 K (27 °C), Equation (4) predicts −0.94 µV K-1which is of the order of the experimentally inferred value of about −1.8 µV K-1.
