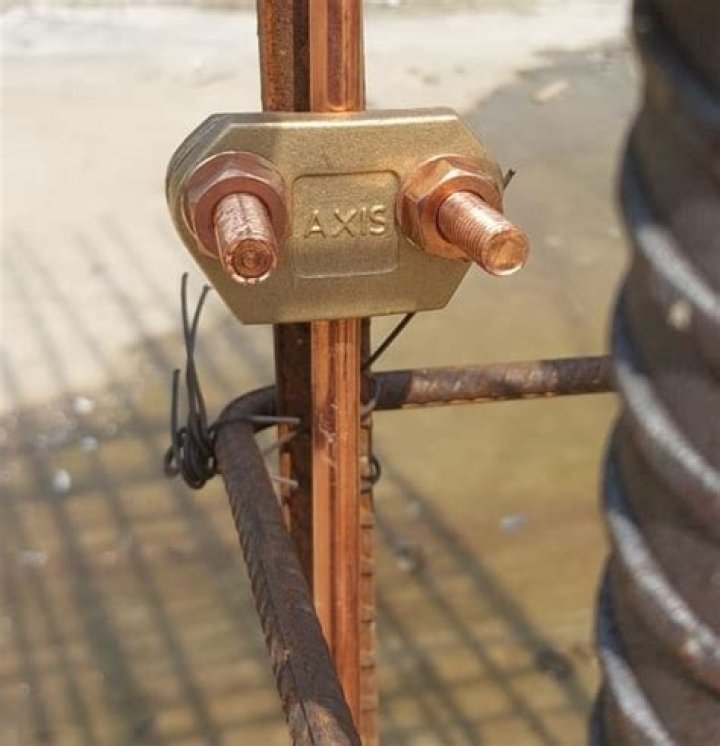

Grounding clamps are used to connect the grounding electrode conductor to the ground rod. This type of clamp is best used inside to make grounding connections around water pipes that are grounded to the ground bus of a service panel.
What is a Kenny clamp?
August 7th, 2010 – The Kenny Clamp is a UL listed grounding and bonding connector. The Kenny Clamp bonds the enclosure of a service panelboard, load center, separately derived system or switchboard to the grounding electrode conductor or to a metallic raceway, a 250.8 and 250.64(E) NEC application.
What are ground clamps made of?
Select ground clamp materials according to local conditions and authorities: Dry indoor – Bronze body with plated steel screws Outdoor – Bronze body with screws per local conditions Direct burial and other harsh environments – Bronze body with bronze or st. steel screws.
What is a bonding connector?
Coaxial Bonding Connectors are used to ground a CATV drop at the subscriber’s premise. The Coaxial Bonding Connector secures the ground wires firmly without scoring or damaging the conductors. By attaching to the common utility ground wire, the need to use additional ground wire and bonding parts is eliminated.
What is a ground clip?
Grounding Clips are used to connect the grounding conductor of non-metallic sheathed cable to outlet boxes, or for connecting the grounding jumper from a receptacle to an outlet. They can also be used to hold #10 or #12 AWG aluminum grounding conductors against the side wall.
Are Kenny clamps required?
The new improved Kenny Clamp connector from Galvan Industries safely bonds grounding electrode conductors to panel boards, switchboards, cutout boxes, metallic conduit and transformer enclosures as required by the latest editions of the National Electrical Code (NEC 250.8 and NEC 312.5(A)).
What is a ground cable?
Ground wire connects a system directly to the earth. In the event of high voltage or irregular electrical currents, the grounding wire transfers electricity to the ground rather than the electrical system. This is a safe transfer of energy that causes no harm to the environment.
What does a welding ground clamp do?
Welders are commonly grounded using a ground clamp typically made of copper or brass. This is done to complete the circuit and allows the welder to create an arc. Without a good ground, it could compromise weld quality, consumables, or even stop you from welding.
What is the difference between bonding and grounding?
Bonding is the connection of non-current-carrying conductive elements like enclosures and structures. Grounding is the attachment of bonded systems to the earth. Both are necessary to safeguard people and property from electric hazards.
What is a bonding clip?
Bonding wire is used to create electrical connections between two metal parts, while grounding wire connects a circuit to the earth or another large conductor for protection. Clips and clamps secure bonding and grounding wire to grounding surfaces.
What is a self-grounding electrical receptacle?
Self-grounding outlets are three-prong outlets that automatically ground to the outlet metal box they are attached to via the mounting screws on the outlet assembly, or via a green pigtail wire from the outlet assembly that is screwed to the metal outlet box.
What is the purpose of grounding electrical equipment?
The purpose of earthing, also known as electrical grounding, is to keep people from touching an electrical hazard. Electrical grounding is also used with electronics to create less noise and to help with surge protection.
What is a grounding clip?
Grounding Clips. These stranded wire UL and CSA recognized grounding clips attach easily over panel or hole edge top to achieve positive ground wire contact with panel, plate or frame. Wire contact is achieved by either quick connect terminals or insulation displacement.
What are grounding lugs?
Grounding Lugs. While compression lugs and grounding lugs are suitable for small scale connections, mechanical lugs support big electrical connections. Mechanical lugs are significantly larger than the other two, while compression lugs are preferred by people who like tinkering with the mechanical fitting themselves.
What is a grounding cable?
ground cable – a mooring cable; runs from a buoy to a mooring anchor. cable – a very strong thick rope made of twisted hemp or steel wire.
