glued joints. notched joints. – Permanent joints are used to join (connect) materials. – Permanent joints must withstand the same mechanical and electrical stress as the materials to be joined. – Permanent joints can only be detached by destruction of the joining elements or of the parts joined.
What are 4 types of lap joints?
Half lap, mitred half lap, cross lap and dovetail lap are the four most commonly used forms of the lap joint. Each style has a cut characteristic that makes it easily identifiable.
What are the types of lap joints?
3 Types of lap joints:
- 3.1 Halving lap joint:
- 3.2 Cross Lap:
- 3.3 Dovetail lap:
- 3.4 End lap:
- 3.5 Mitred half-lap:

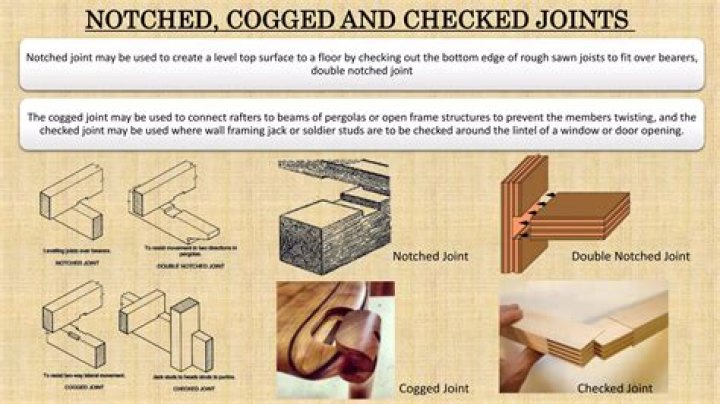

What is a cogged joint?
A carpentry joint formed by two crossed structural members, each of which is notched at the place where they cross.
What is lap joint flange?
A lap-joint flange is a two-component assembly, with a stub end that has a lap-joint ring flange placed over it. This type of flange connection is particularly useful for large or hard-to-adjust flanges. The lap joint flange can be used in sizes and pressure classes similar to that of a weld-neck flange.
What is cross half lap joint?
Key to this project, your half lap joints, also called cross lap joints. What are they? That’s when you cut halfway through the width of the piece of wood on both pieces of wood the same thickness of your piece of wood, and they slide together into a super solid joint. Making a cross lap joint is pretty easy.
Where are notched joints used?
A notch is a “V” shaped groove generally perpendicular to the length of the beam, as seen in Fig. 3. Examples where notched joints are used include cases where secure footing is required for the toe of a rafter (or strut) or between the rafter and the king-post.
What is a dovetail halving joint?
dovetail half-lap joint A joint formed by two members of equal thickness in which a dovetail, 1 at the end of one member is fitted into a corresponding mortise in the second member; half the thickness of each is removed.
What are notched lap joints used for?
Notched lap joints are considered to be stronger than full lap joints. They are used in framing for homes, furniture, and other projects. A miter joint is created when the ends of two boards are cut at angles to fit together. Let’s say you have a couple of two by fours, and you want to make a picture frame, as a simple example.
What is a rabbet joint?
A rabbet joint is a section cut out at the end of a board so that another board’s edge can fit neatly at right angles into it. Rabbet joints are frequently used for cabinetry and box-shaped structures. While they are fairly secure with just nails or screws, it’s a good idea to also use glue for a durable, tough bond.
What is a rabbet joint and Dado joint?
The rabbet joint is a variation on the dado joint, which simply consists of a square groove cut into one board, shaped to fit the end of another board. Like rabbet joints, dado joints are popular in furniture-making and cabinetry. Now it’s time to talk about the types of glue that tend to work best for securing wood joints.
What are joints in woodworking?
When you are crafting furniture, a shed or other building, trim pieces, or other structures and projects, you will find yourself creating various joints. Joints are simply the places where two pieces of wood fit together or connect with each other.
