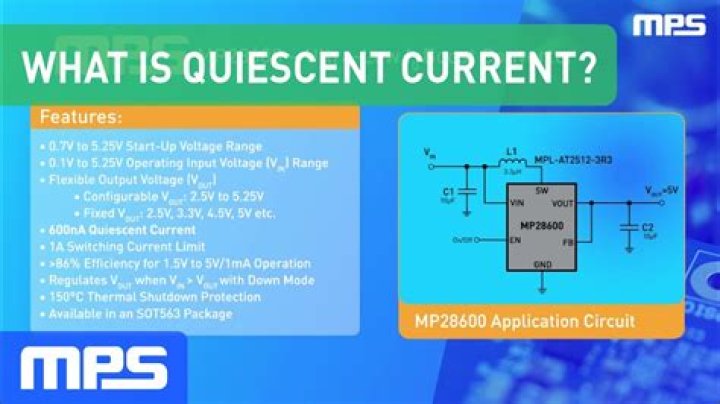

Quiescent current is defined as the current flowing from the GND terminal. The datasheets show a value under a zero-load condition (IOUT=0 A) at the specified input voltage (VIN), bias voltage (VBIAS), and temperature. LDOs with low quiescent current are suitable for battery-operated mobile applications.
Why do we need to reduce quiescent current?
1. Quiescent current: the lower this current, the better the converter can preserve battery life at system standby mode. 2. True shutdown: by blocking the current output from the input in shutdown, this capability improves efficiency and extends shelf life for end products.
What is op amp supply current?
Supply Current: The current drawn from the power supply with no load on the op-amp. Note: There are low power op-amps available that run on less than 10uA.
What is quiescent current of voltage regulators?
Quiescent current (IQ) is the current required to power the LDO’s internal circuitry when the external load current is zero. It includes the operating currents of the band-gap reference, error amplifier, output voltage divider, and overcurrent and overtemperature sensing circuits.
What is quiescent current in IC?
Quiescent Current can be defined as the amount of current used by an IC when in a Quiescent state. The Quiescent state being any period of time when the IC is in either a no load or non-switching condition, however is still enabled.
What is quiescent current in Mosfet?
Why is quiescent current important?
This is a particularly important concept in designing battery-operated systems such as wireless beltpack transmitters. Battery life is determined by the total current drain composed of quiescent current and load current. Quiescent current consumption should be as low as possible in order to prolong the battery’s life.
What does low quiescent current mean?
A low quiescent current LDO is a low-dropout voltage regulator optimized to operate with a drastically low quiescent current (Iq, or self-consumption), which is lower than or negligible compared to the average load current it supplies.
Does op amp output current?
1. No current flowing in and out of the input terminals of the op-amp (high input impedance of op-amp). 2. If the output is not in saturation, the voltage between the inverting and non-inverting input terminals is zero.
Do op amps draw current?
There is a single output, which is almost always connected to the inverting input with a negative feedback loop. Op Amps have almost infinite gain, high input impedance, and low output impedance. The inputs draw no current. The output voltage does not depend on the output current.
What is quiescent voltage?
Q point or the operating point of a device, also known as a bias point, or quiescent point is the steady-state DC voltage or current at a specified terminal of an active device such as a diode or transistor with no input signal applied.
What are the applications of op amp?
Op amps are used in a wide variety of applications in electronics. Some of the more common applications are: as a voltage follower, selective inversion circuit, a current-to-voltage converter, active rectifier, integrator, a whole wide variety of filters, and a voltage comparator.
What are op amps?
Op Amps are an abbreviation for Operational Amplifiers. The term Amps should not be confused with the unit of electric current. In very simple terms, an Op Amp is used to magnify an electrical signal, so that it can become many times more than the initial magnitude.
What is an op amp circuit?
An op-amp (operational amplifier) is an electronic circuit made of several active devices (transistors) and passive devices (resistor, capacitors) etc. which is capable of realizing following the common features:
What are applications of operational amplifier?
Voltage Follower. As the name implies,the voltage follower is a circuit in which the output voltage follows the input voltage.
